Removal And Installation: Right

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the Body Control Module (BCM). Refer to MODULE, BODY CONTROL (BCM), REMOVAL AND INSTALLATION .

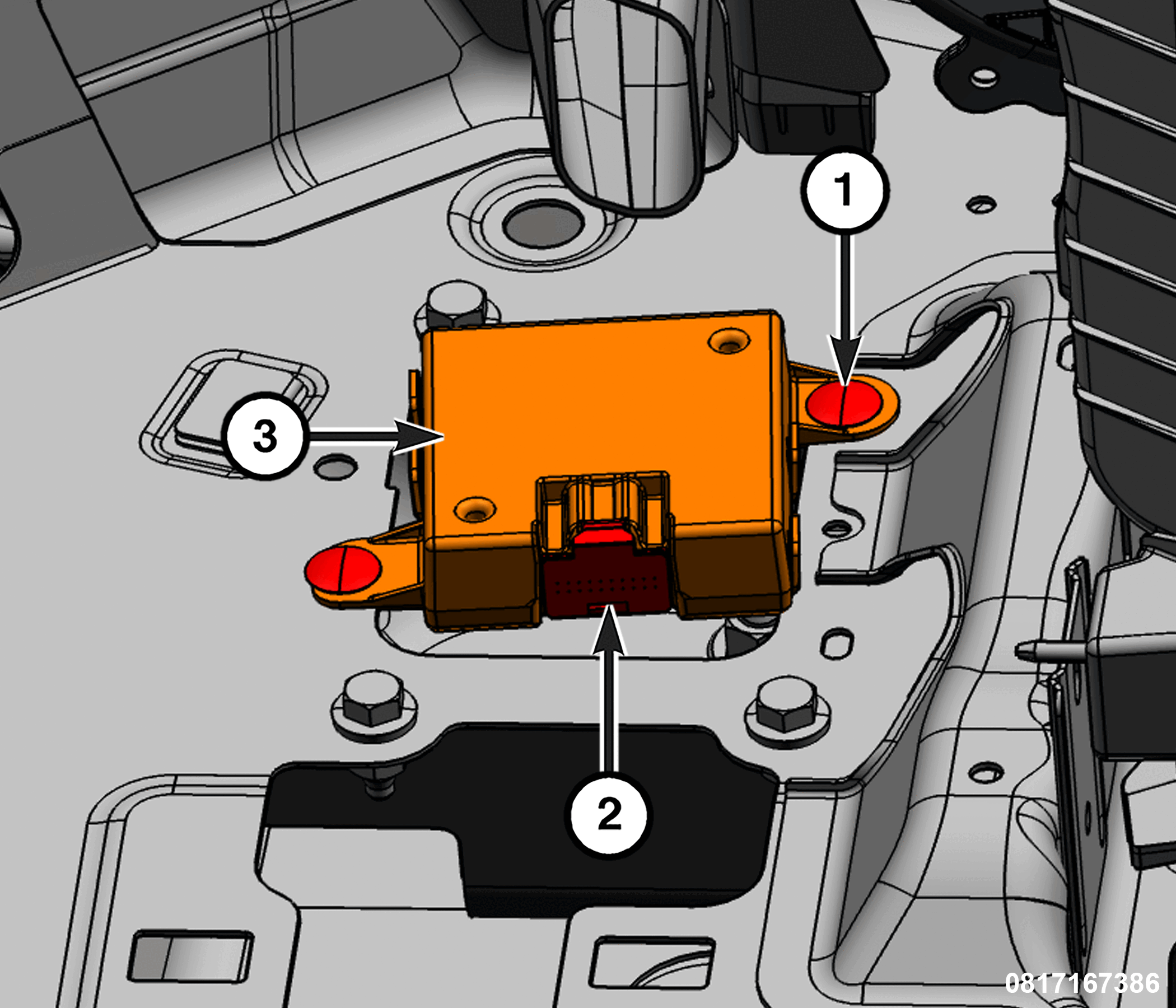

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Wire Harness Connector

3 - Ambient Light Module (ALM)

Remove the fasteners securing the Ambient Light Module (ALM) to the vehicle.
Disconnect the wire harness connector from the ALM then remove the ALM from the vehicle.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle.
