Global Telematics Box Module (TBM2)
WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.
REMOVAL
- Remove the glove box door. Refer to DOOR, GLOVE BOX, REMOVAL AND INSTALLATION
.

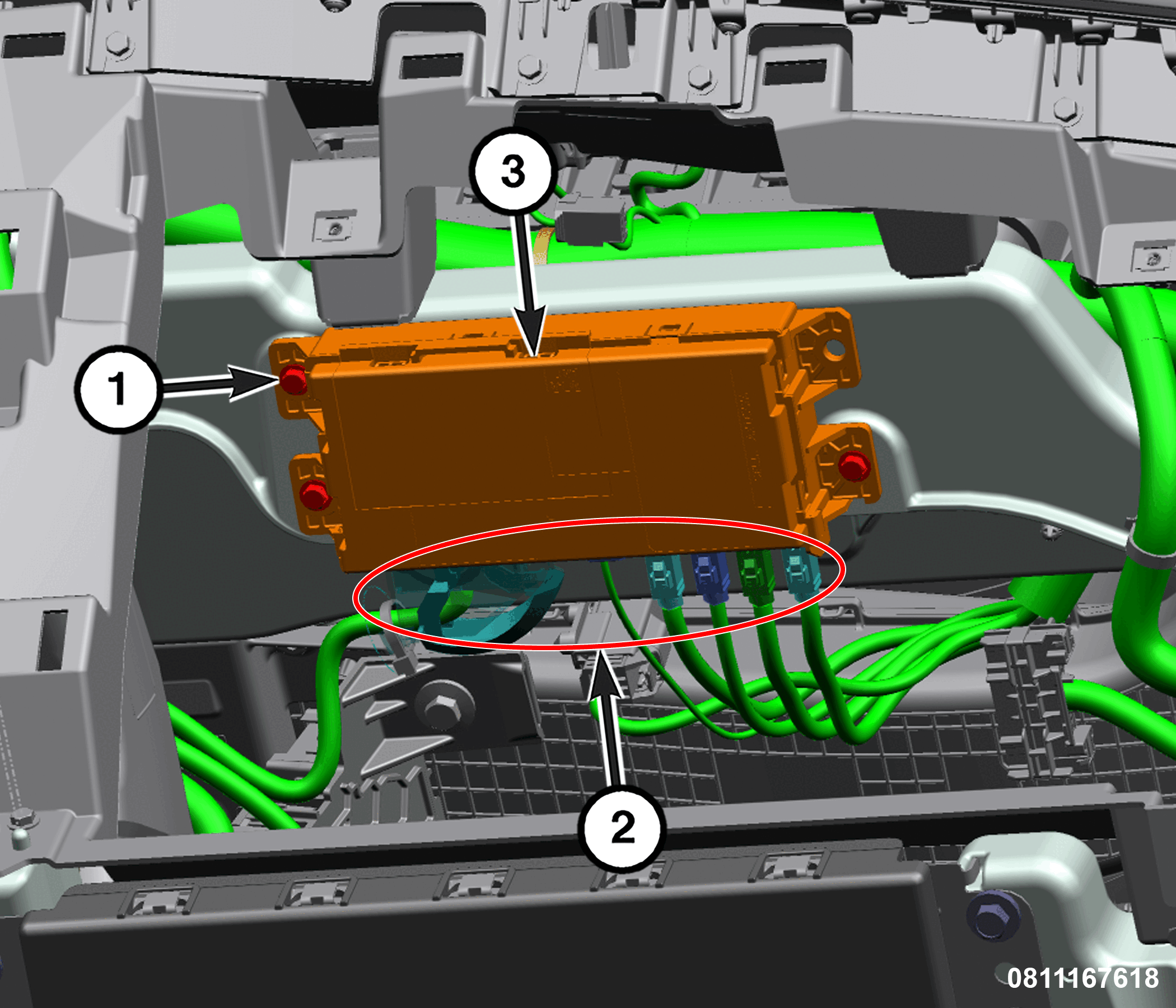

1 - Fasteners 2 - Antenna and Wire Harness Connectors 3 - Global Telematics Box Module (TBM2) - Through the glove box opening, disconnect the antenna and wire harness connectors from the Global Telematics Box Module (TBM2).
- Remove the fasteners (1) from the TBM2 (3) and remove the TBM2 through the glove box opening.
INSTALLATION
- Position the TBM2 through the glove box opening to the instrument panel carrier.
- Install the fasteners the retain the TBM2 and tighten them securely.
- Connect the antennas and wire harness connectors.
- Install the glove box door. Refer to DOOR, GLOVE BOX, REMOVAL AND INSTALLATION .
