Removal And Installation: Speaker

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
  2. Remove the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL AND INSTALLATION .

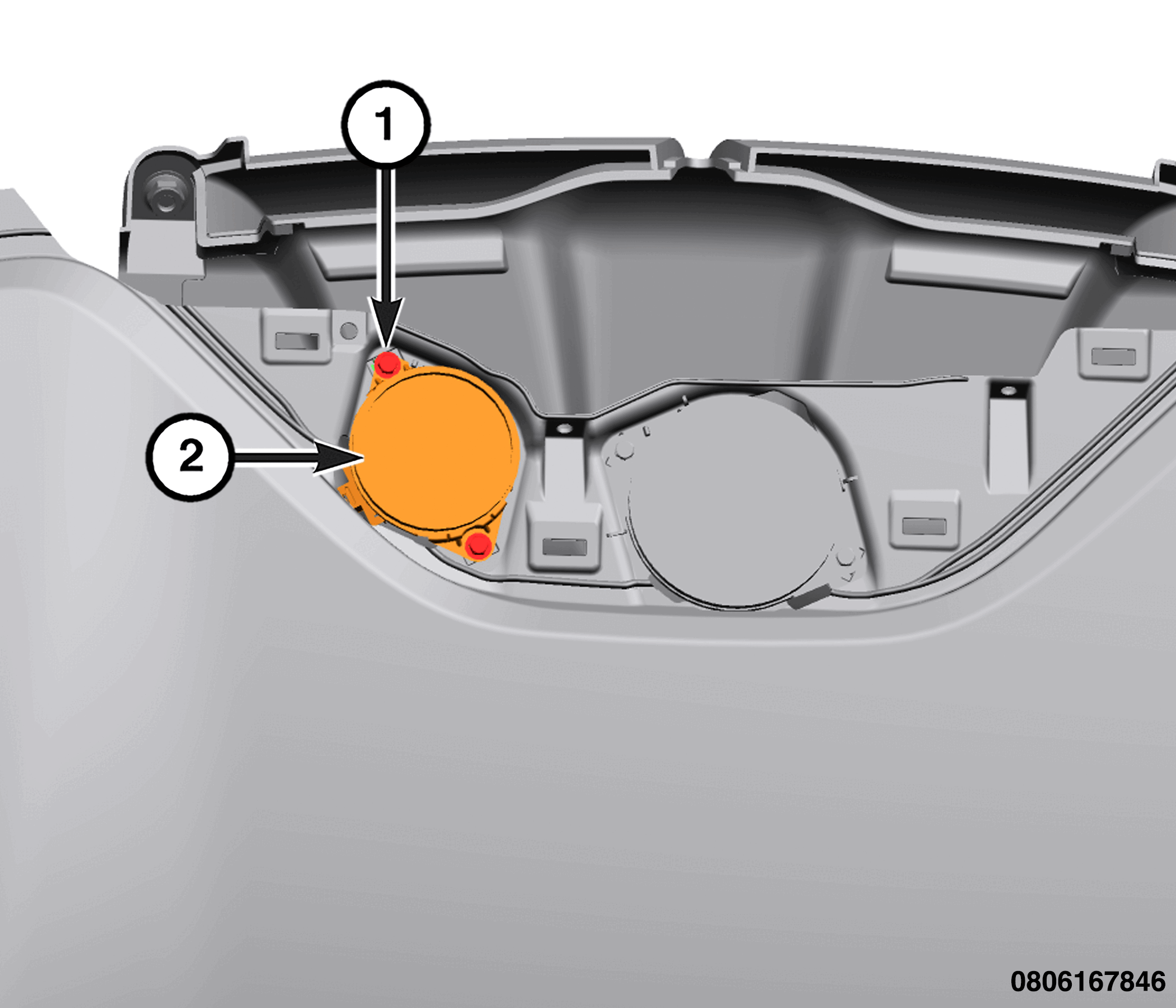

    GC0201428Courtesy of CHRYSLER GROUP, LLC
    1 - Fasteners
    2 - Speaker
  3. Remove the fasteners from the E-call speaker.
  4. Lift up on speaker to disconnect the wire harness connector and remove the speaker from the vehicle.

INSTALLATION

  1. Position the speaker to the instrument panel. Connect the wire harness connector.
  2. Install speaker into the instrument panel. Install the fasteners and tighten them securely.
  3. Install the defroster grille. Refer to GRILLE, DEFROSTER, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
