Keyless Ignition Node (Kin)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

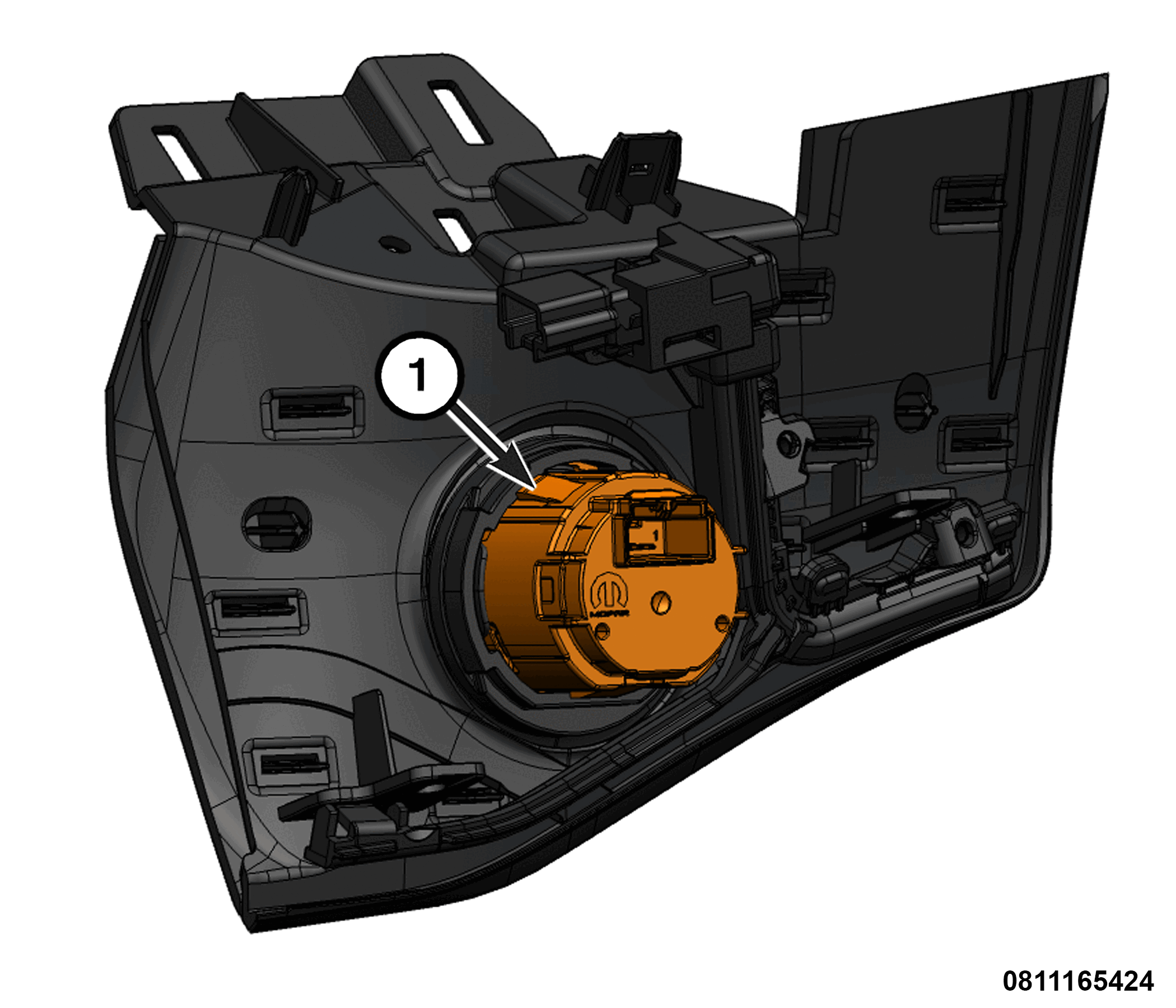

1 - Locking Tabs
Working from below the dash locate and release the locking tabs securing the Keyless Ignition Node (KIN) from the bezel and remove the KIN from the vehicle.
Disconnect the wire harness connector.

INSTALLATION

Connect the wire harness connector.
Install the KIN in the bezel until the latches are fully engaged.
Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
