Power Liftgate Module (PLGM)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

  1. Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
  2. Remove the right lower quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

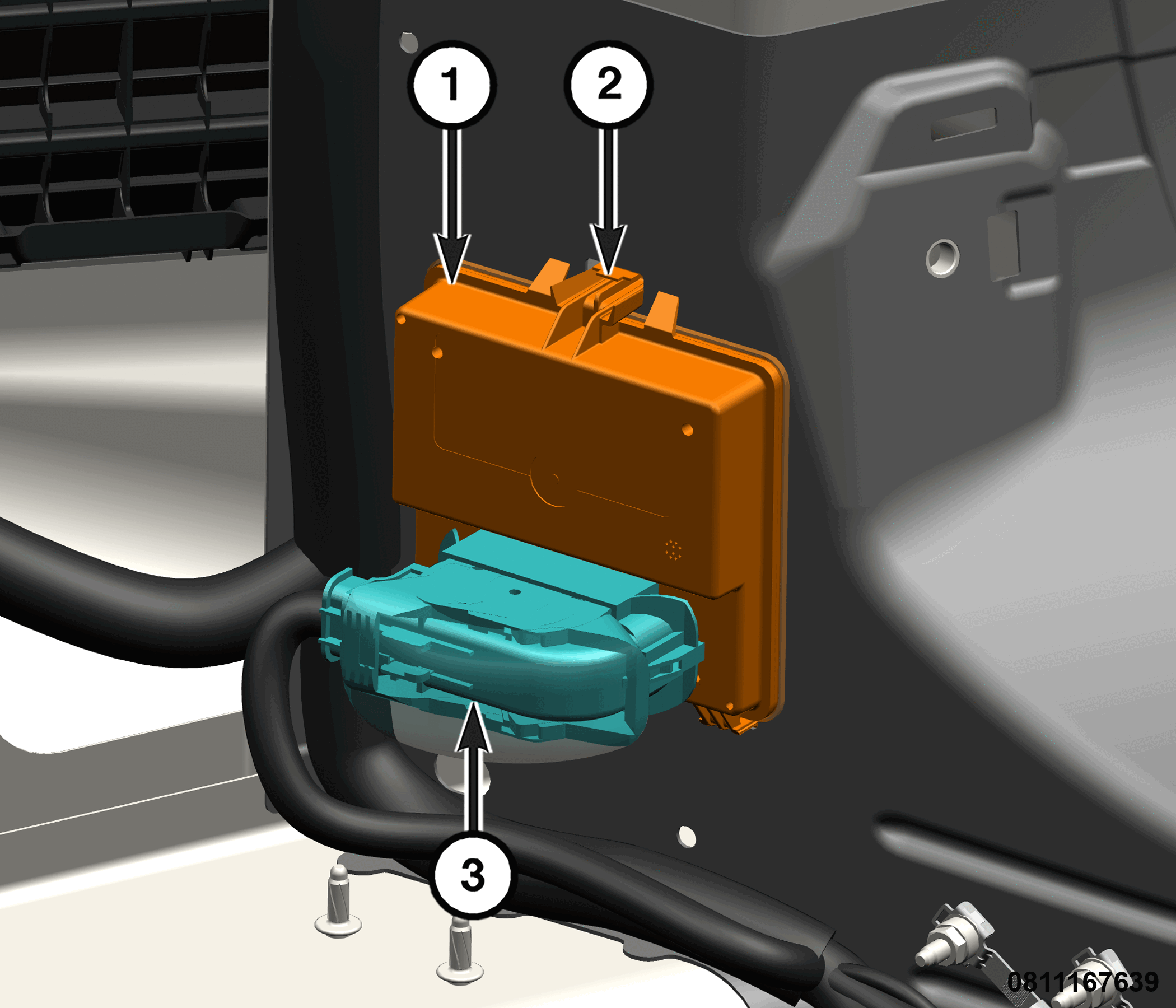

    GC0202034Courtesy of CHRYSLER GROUP, LLC
    1 - Power LiftGate Module (PLGM)
    2 - Power LiftGate Module Latch
    3 - Wire Harness Connector
  3. Disconnect the Power LiftGate Module (PLGM) wire harness connector.
  4. Press the latch feature of the PLGM housing and pull the PLGM out and away from the body.
  5. Remove the PLGM from the vehicle.

INSTALLATION

  1. Install the PLGM into the vehicle. Verify that the module housing latch is fully engaged.
  2. Connect the PLGM wire harness connector.
  3. Install the right lower quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
  5. Perform the power liftgate teach procedure. Refer to POWER LIFTGATE LEARN/RELEARN PROCEDURE .
