Smart Lighting Module (SLM)

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Left side shown, right side similar.

REMOVAL

Remove the front lamp unit. Refer to UNIT, FRONT LAMP, REMOVAL AND INSTALLATION .

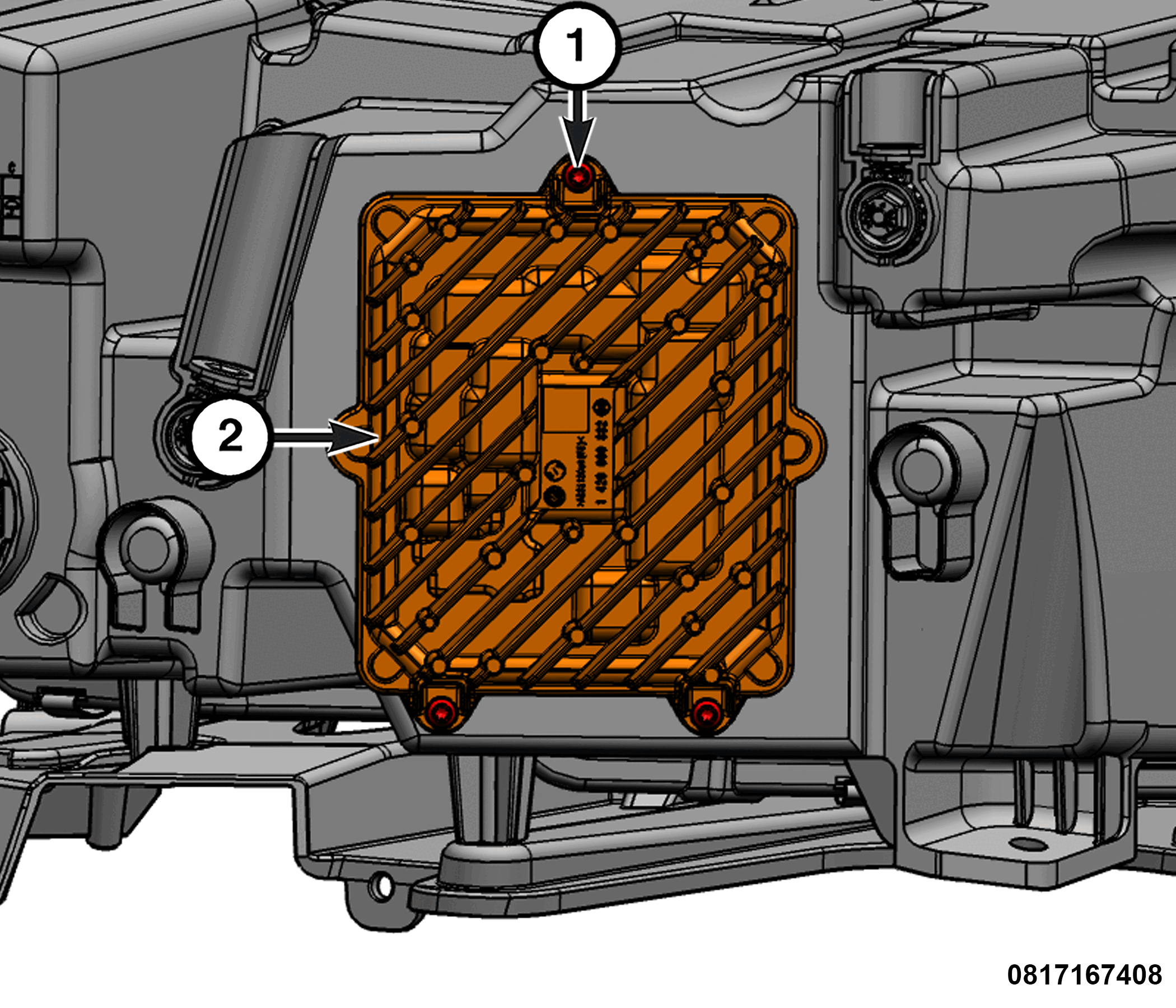

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Smart Lighting Module (SLM)
Remove the fasteners securing the Smart Lighting Module (SLM) to the front lamp unit.

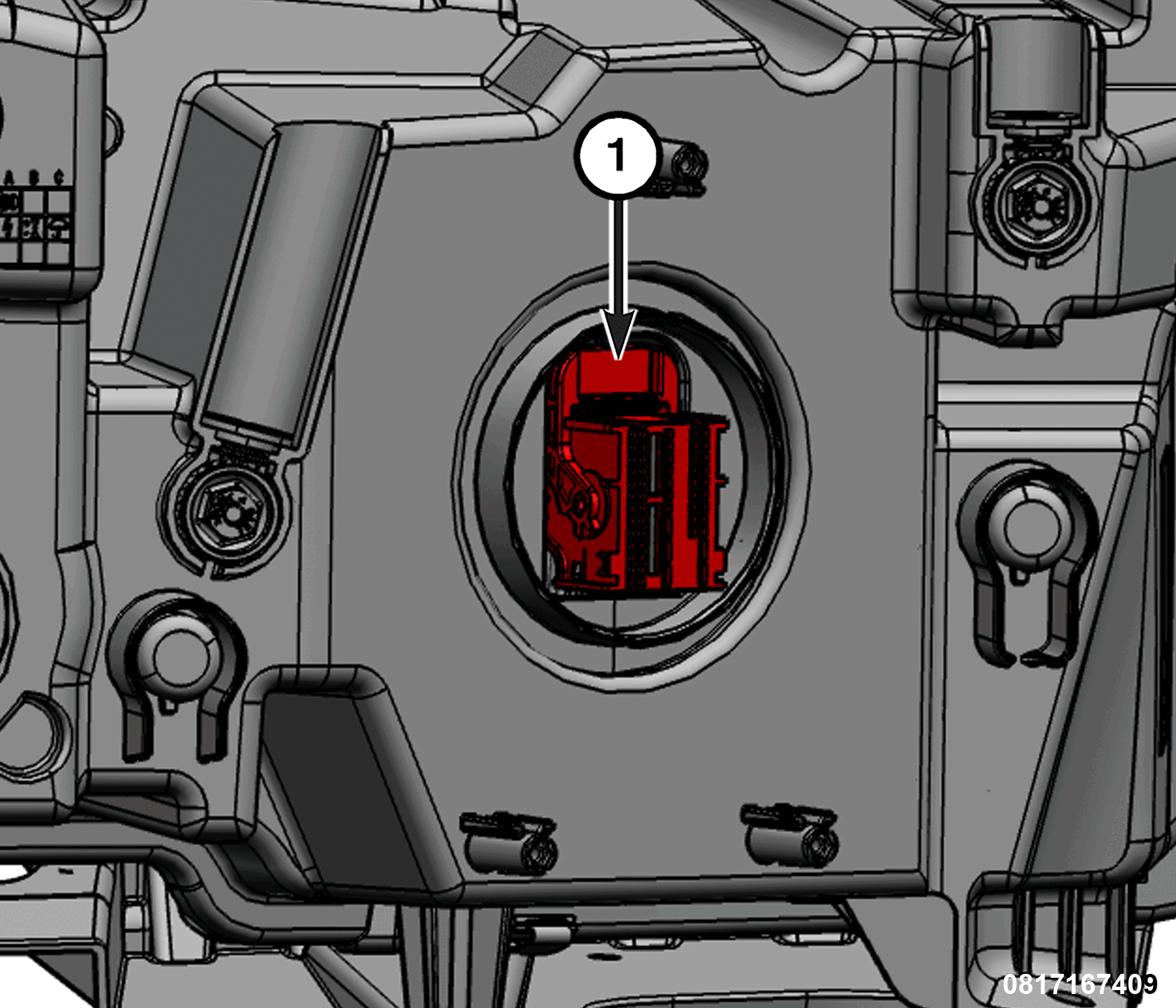

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector
Disconnect the wire harness connector from the SLM.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Tighten the fasteners securely.
