Prop Assembly, Power: Removal

Courtesy of CHRYSLER GROUP, LLC

Open and support the liftgate with a suitable prop or block.
Locate the mount (2) for the liftgate strut (3) on the liftgate (1).

Courtesy of CHRYSLER GROUP, LLC

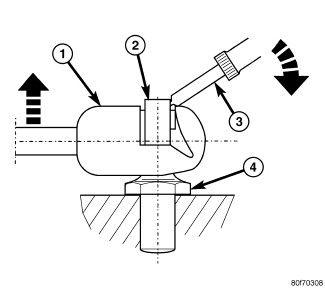

Using a small flat bladed tool (3), or equivalent, release the retaining clips (2) while pulling the ball socket (1) away from the ball stud (4).

Courtesy of CHRYSLER GROUP, LLC
Remove the rubber grommet (1) to gain access to the liftgate strut (3) connector.

Courtesy of CHRYSLER GROUP, LLC
Disconnect the connector (2).
Remove the strut (1) from the vehicle.
