Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Jeep Renegade. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When replacing the DTCM, use the diagnostic scan tool to go to the menu "various functions" and follow the steps for the "replacement unit" routine.

Disconnect and isolate the negative battery cable.
Using a trim stick or equivalent, remove the instrument panel side cover.
Lower the silencer panel.

Fig 1: Retainer
Courtesy of CHRYSLER GROUP, LLC
Remove the retainer (1) and position the reposition the side floor cover.

Fig 2: Protection Cover
Courtesy of CHRYSLER GROUP, LLC
Remove the protection cover (1).

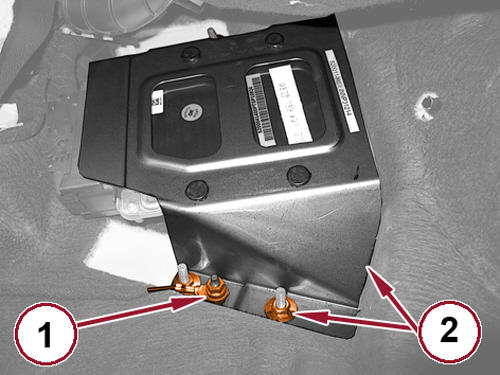

Fig 3: Cover, Cable End & Nuts
Courtesy of CHRYSLER GROUP, LLC
Remove the nut remove the cable end (1).
Remove the nuts and remove the module with cover (2).
