Module, Wireless Charging Pad: Description

WARNING: This page is about a different car, the 2018 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

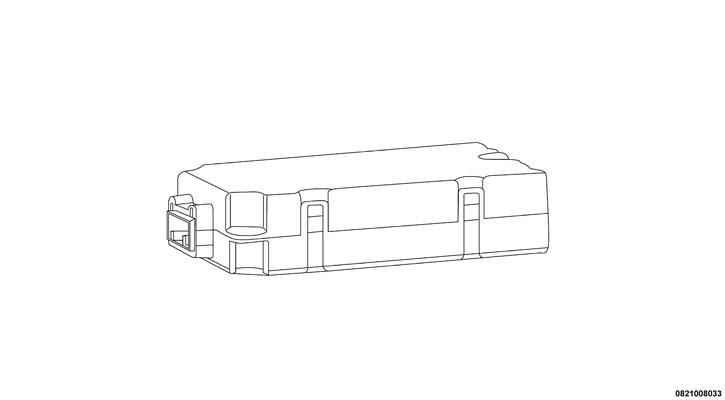

GC0159785Courtesy of CHRYSLER GROUP, LLC

The wireless charging pad will charge a cell phone up to 5W through inductive charging. It follows the WPC (Wireless Power Consortium) Standard. The wireless charging pad is located within the top tray of the center console.

This optional feature enables wireless charging of any cell phone that is Qi-wireless charging capable or has a Qi sleeve or backplate.

The wireless charging pad comes with a "phone retention feature" that holds that phone in place throughout up or down console movement and ensures efficient charge. The device must be aligned with the pad in order to charge correctly. An serviceable LED light will blink green to show the phone is charging and aligned correctly.
