Module, Wireless Charging Pad: Installation

WARNING: This page is about a different car, the 2018 Jeep Cherokee. However, it is still accessible from the selected car via links, so may be relevant.

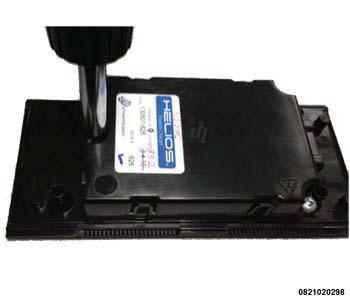

GC0159682Courtesy of CHRYSLER GROUP, LLC
  1. Attach wireless charging module to the upper tray with three screws using #S2 screwdriver.

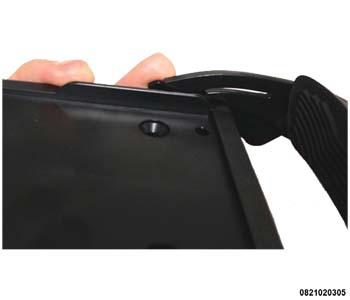

    GC0159857Courtesy of CHRYSLER GROUP, LLC

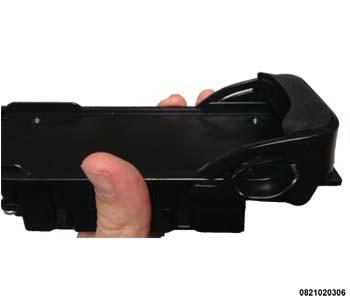

    GC0159941Courtesy of CHRYSLER GROUP, LLC
  2. Attach one end stop by pivoting it into the tray.

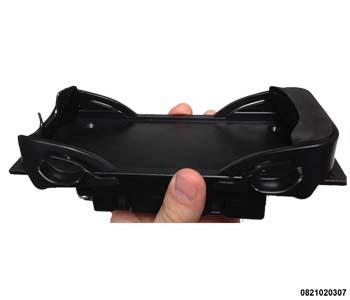

    GC0159680Courtesy of CHRYSLER GROUP, LLC
  3. Repeat step 2 to install the other end stop to the tray.

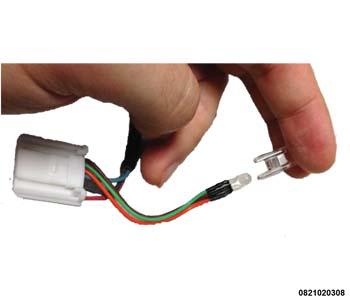

    GC0159397Courtesy of CHRYSLER GROUP, LLC
  4. Insert the LED into the LED lens.

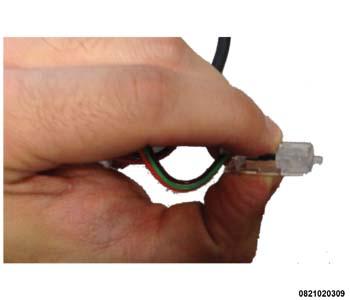

    GC0159341Courtesy of CHRYSLER GROUP, LLC
  5. Squeeze on the LED lens retaining clips to make sure they are engaged. Tug on the LED harness to confirm the LED is seated.

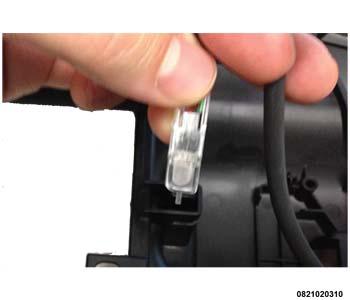

    GC0159977Courtesy of CHRYSLER GROUP, LLC
  6. Insert the LED Lens into the Lower Tray ensuring that the round portion of the Lens faces the opening in the Lower Tray.

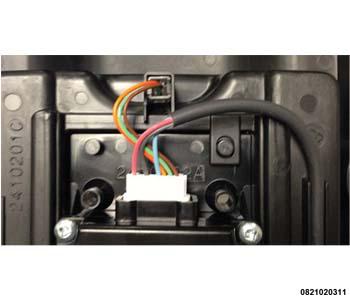

    GC0159697Courtesy of CHRYSLER GROUP, LLC
  7. Place upper tray assembly into lower tray and insert the Tyco connector into module and wire harness in the channel ensuring the routing of the harness mimics the related graphic exactly.

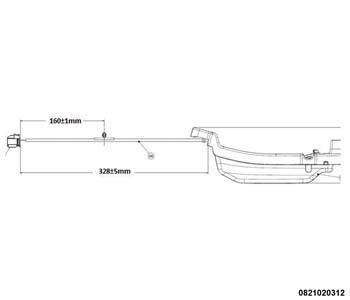

    GC0159790Courtesy of CHRYSLER GROUP, LLC
  8. The distance from the connector to channel entry point has to be 88mm±3mm. The distance from the exit of the tray to connector needs to be exactly 328±5mm.

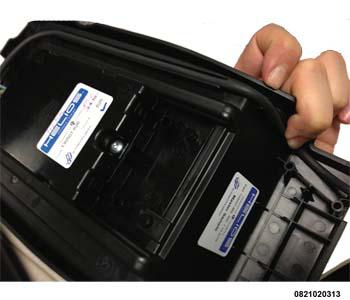

    GC0159663Courtesy of CHRYSLER GROUP, LLC
  9. Ensure also to hold down the harness in the channel at the back of the part while putting on bottom cover.

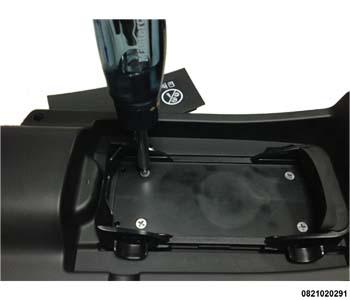

    GC0159434Courtesy of CHRYSLER GROUP, LLC
  10. Attach bottom cover to upper tray with four screws using Phillips #2 screwdriver.

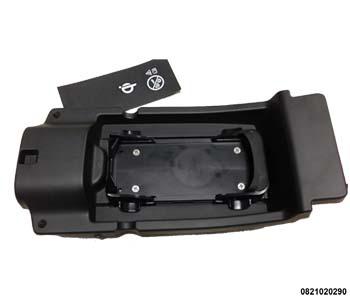

    GC0159765Courtesy of CHRYSLER GROUP, LLC
  11. Ensure end stops are at the full out positions.

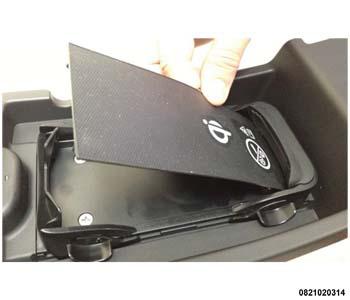

    GC0159332Courtesy of CHRYSLER GROUP, LLC
  12. Wedge the edge of the anti-slip mat under the rigid end stop bumper.

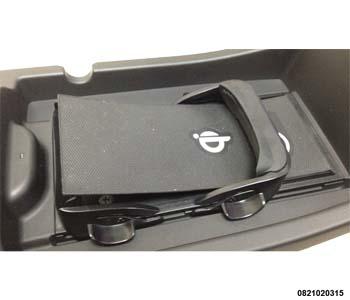

    GC0160046Courtesy of CHRYSLER GROUP, LLC
  13. Slide the Bumper over the mat.

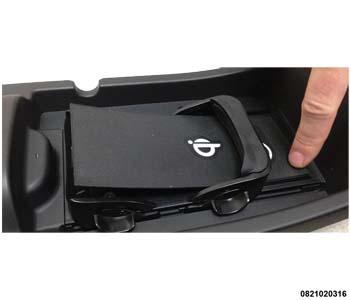

    GC0159569Courtesy of CHRYSLER GROUP, LLC
  14. Push down the two pins into blind bosses.

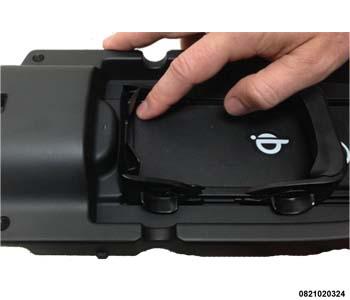

    GC0159961Courtesy of CHRYSLER GROUP, LLC
  15. Push down the two pins on the other side of the mat into blind bosses to fully seat anti slip mat.
  16. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
