Module, Anti-Lock Brake System (Abs): Description

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

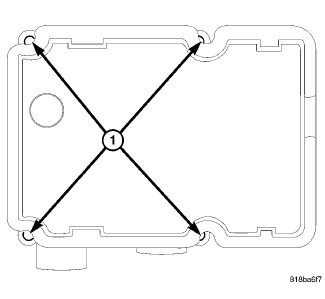

The Antilock Brake Module (ABM) is mounted to the Hydraulic Control Unit (HCU) and operates the ABS system.
