Module, HVAC: Installation

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

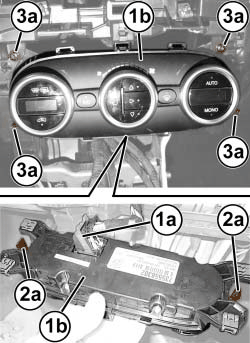

Position the A/C heater control (1b) to the instrument panel and connect the HVAC wire harness connector (1a).
Engage the side retainers (2a), then install the four screws (3a) that secure the A/C heater control (1b) to the instrument panel. Tighten the screws securely.
Install the instrument panel Heating and A/C bezel. Refer to BEZEL, INSTRUMENT PANEL, HEATING AND A/C, INSTALLATION .
Connect the negative battery cable.
Initiate the Actuator Calibration function using a scan tool. Refer to STANDARD PROCEDURE .

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
