Module, HVAC: Removal

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

  1. Disconnect and isolate the negative battery cable.
  2. Remove the instrument panel Heating and A/C Bezel. Refer to BEZEL, INSTRUMENT PANEL, HEATING AND A/C, REMOVAL .

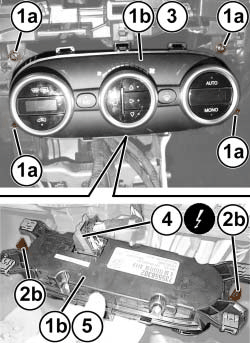

    GC0184320Courtesy of CHRYSLER GROUP, LLC
  3. Remove the four screws (1a), then disengage the side retainers (2b) that secure the A/C heater control (1b) to the instrument panel.
  4. Disconnect the HVAC wire harness connector (4) from the A/C heater control (1b) and remove the A/C heater control.
