Module, Park Assist (PAM): Installation

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of CHRYSLER GROUP, LLC

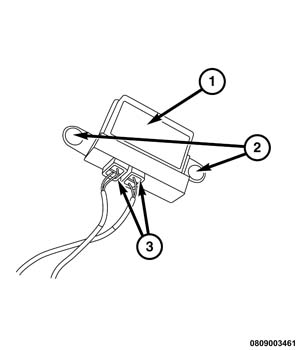

Position the Park Assist Module (PAM) (1) to the left quarter inner panel between the C-pillar and D-pillar.
Secure the PAM to the quarter inner panel using a blind rivet installation tool and two new blind rivets (2).
Reconnect the two body wire harness connectors (3) to the PAM connector receptacles.
Reinstall the trim onto the right quarter inner panel. Refer to PANEL, QUARTER TRIM, REAR, INSTALLATION .
Reconnect the negative cable to the battery.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, a diagnostic scan tool MUST be used to determine if alignment of the PROXI configuration data into the new ECU is needed. If PROXI alignment is needed, follow the routine outlined in the diagnostic scan tool for PROXI Configuration Alignment under the Body Control Module (BCM) Miscellaneous Functions menu.
