Module, Security Gateway (SGM): Removal

WARNING: This page is about a different car, the 2018 Fiat 500L. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If this Electronic Control Unit (ECU) is being replaced with a new unit, use a diagnostic scan tool to perform the Flash Programming Procedure (if available).

Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
Remove the driver Knee AirBag (KAB). Refer to AIR BAG, KNEE BLOCKER, REMOVAL .

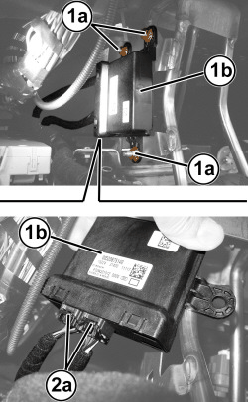

Courtesy of CHRYSLER GROUP, LLC
Disconnect the Security Gateway Module (SGW) wire harness connectors (2a).
Remove the bolts (1a) from the SGW (1b).
Remove the SGW from the vehicle.
