Removal And Installation

REMOVAL

1. Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .

   Courtesy of CHRYSLER GROUP, LLC

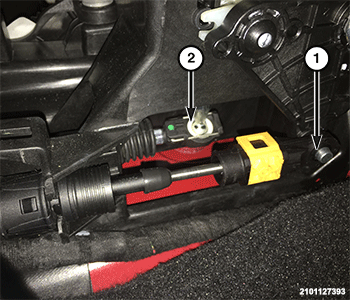

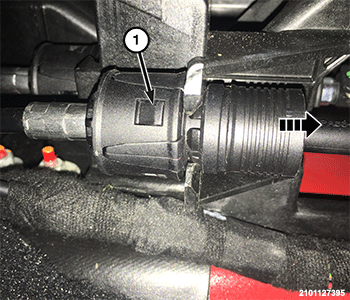

2. Disengage the retainers (1) holding the cable housings to the shifter bracket by grabbing the collar on the cable and sliding it forward, while gently lifting up on the cable.

   Courtesy of CHRYSLER GROUP, LLC

3. Pry the neutral gate cable end (1) to the right toward the passenger seat to disengage the cable end from the shifter pin.
4. Release the spring-clip holding the range cable end (2) to the fulcrum ball under the shifter handle and push the cable end downward to disengage it.

   Courtesy of CHRYSLER GROUP, LLC

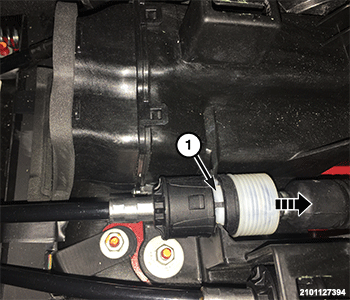

5. Remove the three retaining nuts (1) from the cable pass-through plug, push the cable pass-through plug downward, taking care not to tear the plug.
6. Push the cables down through the pass-through hole.
7. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .

   Courtesy of CHRYSLER GROUP, LLC

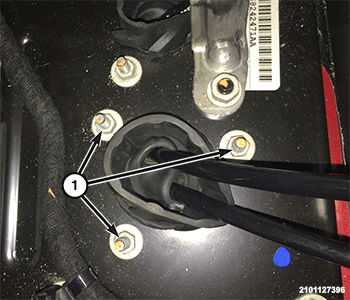

8. Disengage the retainer (2) holding the range cable to the transmission bracket and lift the range cable housing from the bracket.
9. Pry the range cable upward to disengage the cable end (1) from the counterweighted gearshift lever.
10. Disengage the retainer (2) holding the neutral gate cable to the transmission bracket and lift the cable housing from the bracket.
11. Pry the neutral gate cable end to the left (driver side) to disengage the cable end (1) from the shift lever.
12. Remove the cables from the vehicle.

INSTALLATION

1. Raise and support the vehicle Refer to HOISTING, STANDARD PROCEDURE .
2. Insert the shift cables through the access hole in the floor pan under the vehicle.
3. Push the rubber floor plug upward into the access hole and align the studs to the mounting holes in the underside of the floor pan.

   Courtesy of CHRYSLER GROUP, LLC

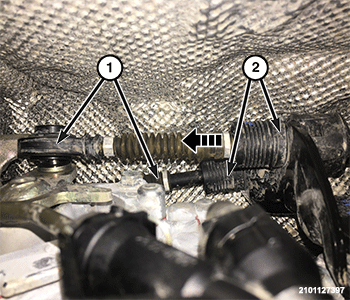

4. Route the cables under the vehicle and position the retainers (2) in the shift cable bracket (range select cable located on top, neutral gate cable located on bottom). Push down on the cable retainers to snap them into place.
5. Connect the cable ends (1) to the shift levers at the transmission (range select the on top, neutral gate on the left side).
6. Remove the support and lower the vehicle.

   Courtesy of CHRYSLER GROUP, LLC

7. Tighten the three retaining nuts (1) for the cable assembly pass-through to the proper specifications. Refer to TORQUE SPECIFICATIONS .
8. Route the range cable under the shifter and engage the cable housings into position on the shifter bracket. Push to the left to lock the cable housings in place.

   Courtesy of CHRYSLER GROUP, LLC

9. Connect the range cable end (2) to the ball end under the shifter, ensuring the retaining clip snaps into place. Position the neutral gate cable end (1) to the shift lever and snap it in place.
   NOTE:

   Do not lock the neutral gate cable adjustment yet.

   Courtesy of CHRYSLER GROUP, LLC

10. Position the gear shifter in third gear inside the vehicle.

    Courtesy of CHRYSLER GROUP, LLC

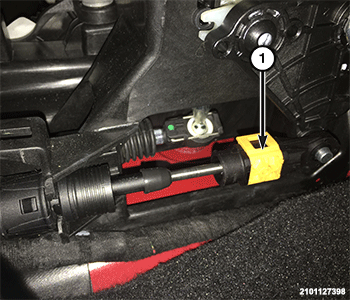

11. While holding the shifter forward against the blocker in third gear, set the neutral gate lock (1).
12. Verify the shifter goes into all gears smoothly and there is no resistance or excessive force needed to shift into all gears.
13. Install the floor console assembly Refer to CONSOLE, FLOOR, REMOVAL AND INSTALLATION .
14. Road test the vehicle to verify the repair.
