Wireless Charging Pad Module

WARNING: This page is about a different car, the 2021 Jeep Grand Cherokee L. However, it is still accessible from the selected car via links, so may be relevant.

REMOVAL

Disconnect and isolate the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
Remove the storage bin from the front of the center console. Refer to BIN, STORAGE, REMOVAL AND INSTALLATION .

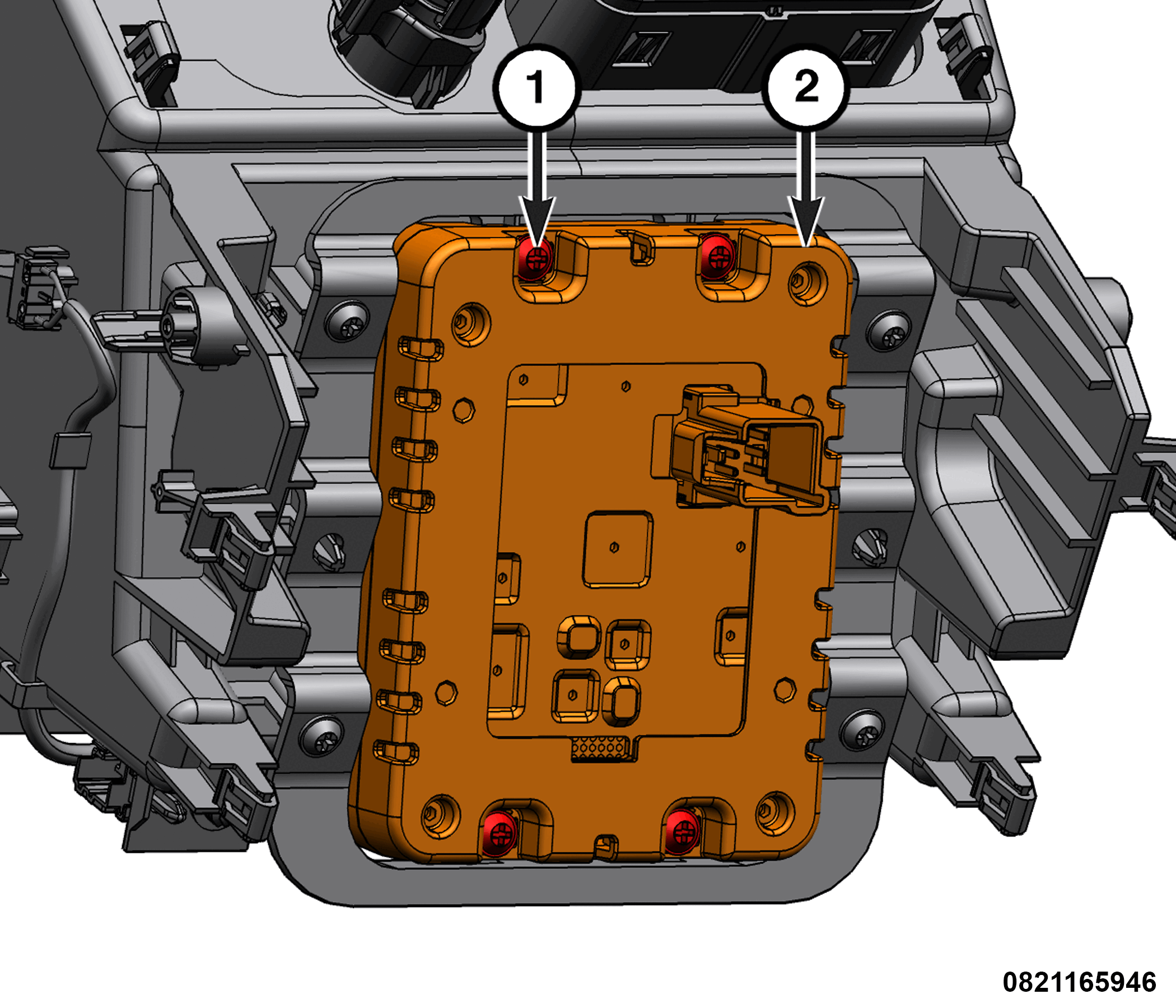

Courtesy of CHRYSLER GROUP, LLC

1 - Fasteners

2 - Wireless Charging Pad Module
Disconnect the wire harness connector from the wireless charging pad module.
Remove the fasteners securing the wireless pad charging module and remove the module from the storage bin.

INSTALLATION

Position the wireless charging pad module to the storage bin, install and securely tighten the fasteners.
Connect the wire harness connector to the wireless charging pad module.
Install the storage bin into the front of the center console. Refer to BIN, STORAGE, REMOVAL AND INSTALLATION .
Connect the negative battery cable(s). Refer to BATTERY DISCONNECT AND CONNECT - 3.6L or BATTERY DISCONNECT AND CONNECT - 5.7L .
