Removal And Installation: Installation

  1. Inspect the radiator for damage.
    GC0163740Courtesy of CHRYSLER GROUP, LLC

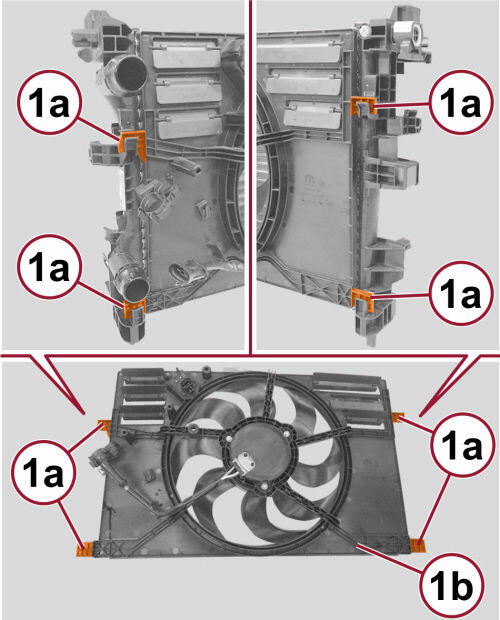

  2. Install the cooling fan (1b) onto the radiator and secure the retaining tabs (1a).
    GC0164812Courtesy of CHRYSLER GROUP, LLC

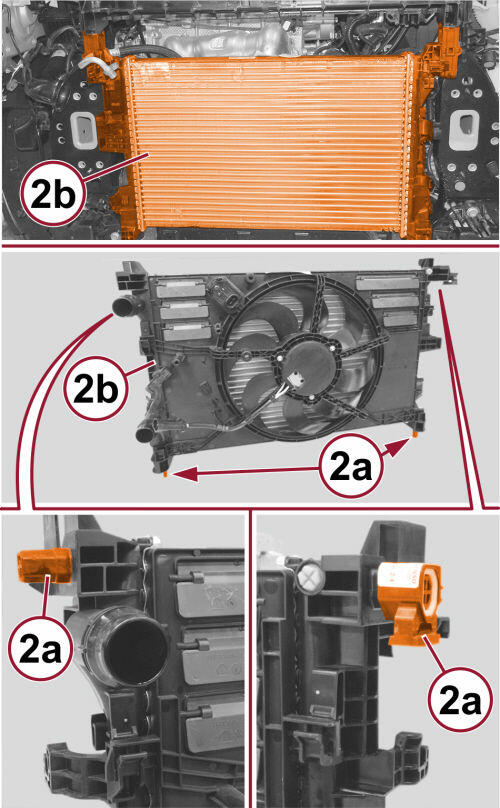

  3. Install the radiator/cooling fan assembly (2b) and the retaining brackets (2a).
  4. Install the closeout covers.
    GC0164427Courtesy of CHRYSLER GROUP, LLC

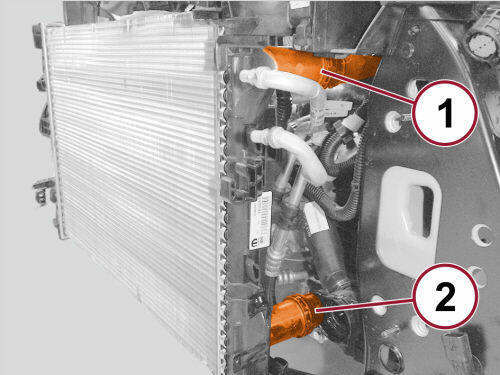

  5. Install the lower radiator hose (2).
  6. Install the upper radiator hose (1).
    GC0162925Courtesy of CHRYSLER GROUP, LLC

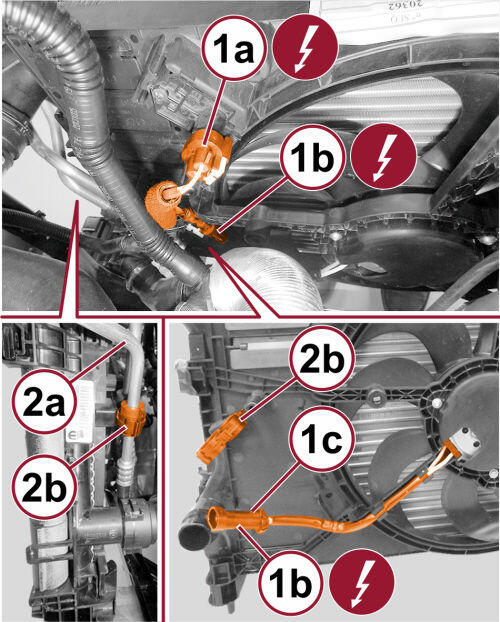

  7. Attach the lines (2a) and secure the retaining clips (2b).
  8. Attach the wire harness (1c), connect the cooling fan resistor wire harness connector (1a) and the cooling fan wire harness connector (1b).
    GC0165580Courtesy of CHRYSLER GROUP, LLC

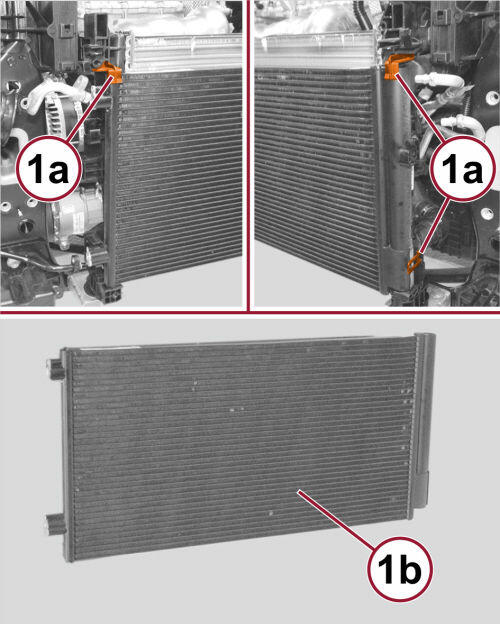

  9. Install the A/C condenser (1b) and the retaining clips (1a).
    GC0165691Courtesy of CHRYSLER GROUP, LLC

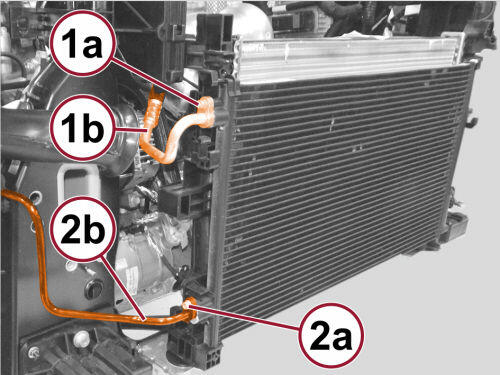

  10. Using NEW  seals, install the A/C line (2b) to the condenser and securely tighten the fastener (2a)
  11. Using NEW  seals, install the A/C line (1b) to the condenser and securely tighten the fastener (1a).
    GC0164335Courtesy of CHRYSLER GROUP, LLC

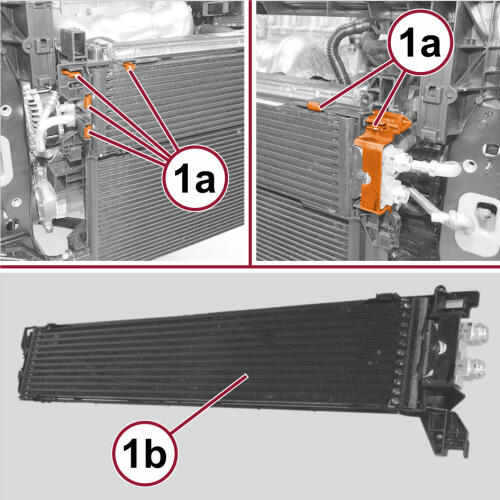

  12. Install the transmission oil cooler (1b) and secure the retainers (1a).
    GC0165395Courtesy of CHRYSLER GROUP, LLC

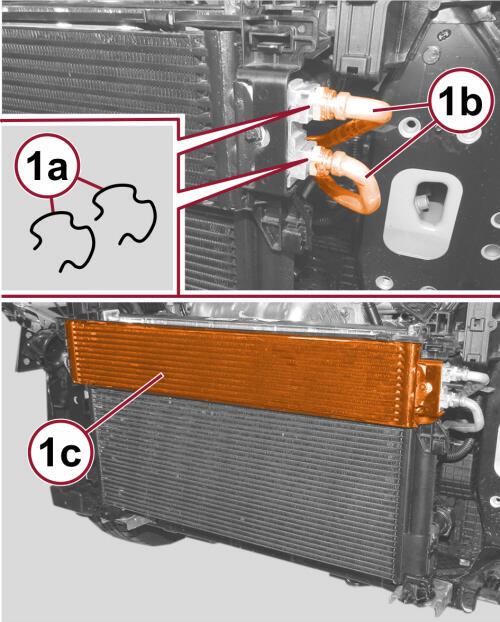

  13. Remove the seal plugs from the transmission cooler and the transmission cooler lines.
  14. Using NEW  seals, install the transmission cooler lines (1b) to the transmission cooler (1c) and install the retaining clips (1a).
    GC0164958Courtesy of CHRYSLER GROUP, LLC

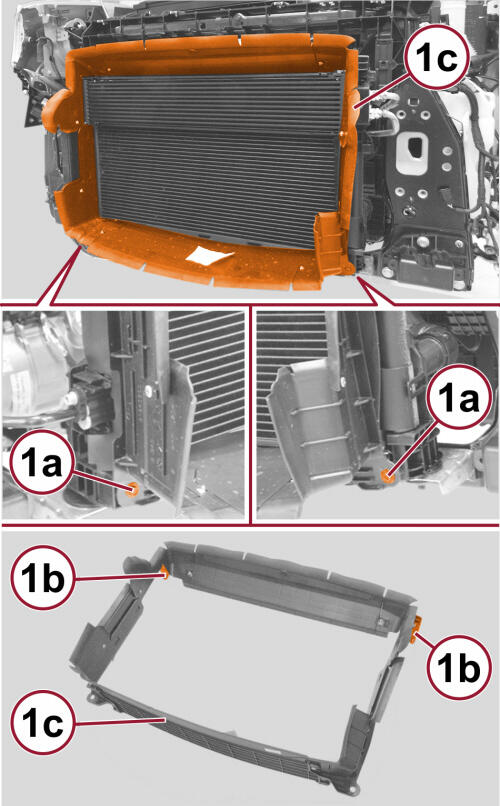

  15. Install the radiator air deflector (1c) and secure the side retainers (1b) and securely tighten the fasteners (1a).
    GC0164821Courtesy of CHRYSLER GROUP, LLC

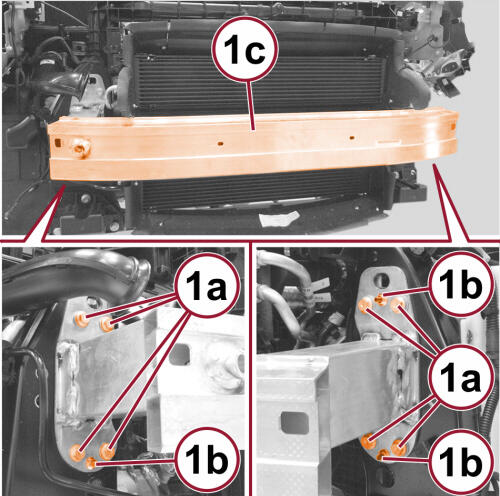

  16. Install the front bumper reinforcement (1c). Tighten the nuts (1b) and bolts (1a) to the proper specification. Refer to TECHNICAL SPECIFICATIONS .
    GC0163589Courtesy of CHRYSLER GROUP, LLC

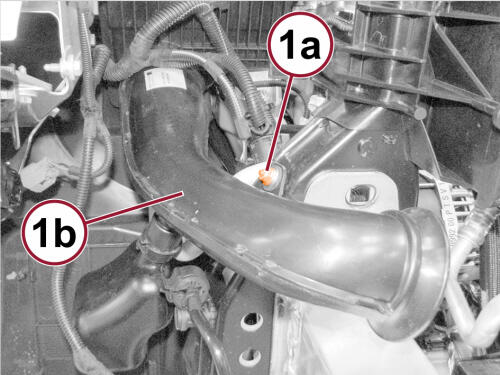

  17. Install the air cleaner inlet tube (1b) and securely tighten the fastener (1a).
  18. Fill the cooling system. Refer to DRAINING AND FILLING THE COOLING SYSTEM - 2.4L  .
  19. Evacuate and charge the refrigerant system. Refer to R-1234YF REFRIGERANT SYSTEM EVACUATE and R-1234YF REFRIGERANT SYSTEM CHARGE .
  20. Install the front bumper fascia. Refer to FASCIA, FRONT, INSTALLATION .
  21. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
