Battery System (Service Information): Battery: Removal
- Remove the battery Intelligent Battery Sensor (IBS). Refer to SENSOR, INTELLIGENT BATTERY (IBS), REMOVAL .

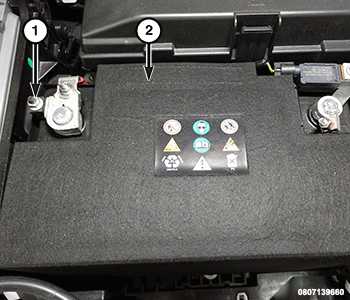

- Remove the battery positive cable (1) terminal from the battery.
- Remove the battery thermal protection cover (2) from the battery.

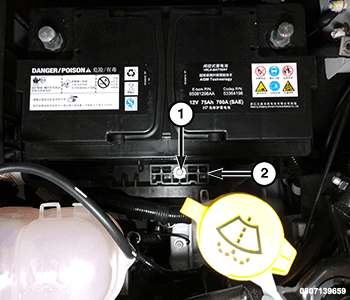

- Remove the battery retainer bolt (1) and the battery retainer (2) for the battery tray.
- Remove the battery from the vehicle.
