Sensor, Ambient Temperature: Installation

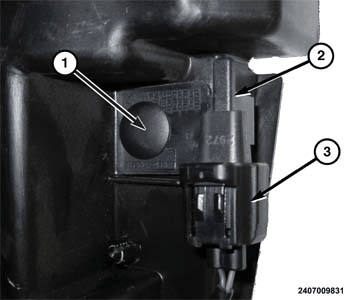

GC0159721Courtesy of CHRYSLER GROUP, LLC
  1. Install the push pin (1) that secures the ambient air temperature sensor to the vehicle.
  2. Connect the wire harness connector (3) to the ambient air temperature sensor (2).
  3. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
