Manifold, Coolant: Removal

  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the engine cover. Refer to COVER, ENGINE, REMOVAL .
  3. Drain the cooling system. Refer to DRAINING  .
  4. Disconnect the upstream and down stream oxygen sensor wire harness connector.
    GC0186595Courtesy of CHRYSLER GROUP, LLC
  5. Remove the six bolts (1) and the turbocharger heat shield (2).
    GC0186474Courtesy of CHRYSLER GROUP, LLC
  6. Disconnect the Engine Coolant Temperature (ECT) sensor wire harness connector (1).
    GC0186887Courtesy of CHRYSLER GROUP, LLC
  7. Remove the upper radiator hose (1) from the thermostat housing (2).
  8. Remove the coolant hose (3) from the thermostat housing (2).
    GC0186508Courtesy of CHRYSLER GROUP, LLC

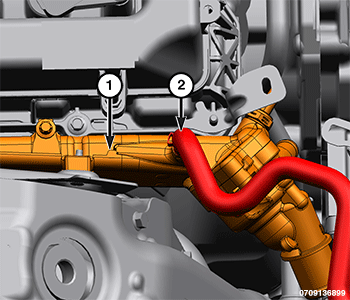

  9. Remove the coolant hose (2) from the coolant manifold (1).
    GC0186570Courtesy of CHRYSLER GROUP, LLC

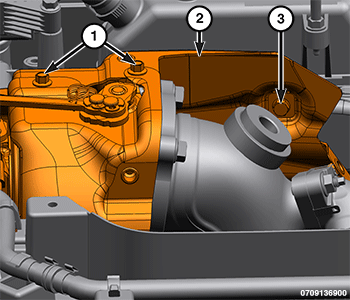

  10. Remove the turbocharger heat shield (2) bolts (1, 3).
    GC0186832Courtesy of CHRYSLER GROUP, LLC

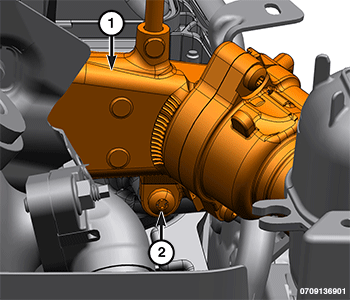

  11. Remove the lower coolant manifold (1) bolt (2).
    GC0187000Courtesy of CHRYSLER GROUP, LLC

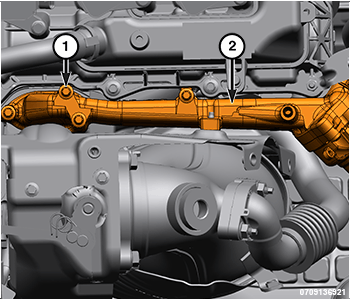

  12. Remove the bolts (1) and the coolant manifold (2).
