Radiator, Engine Cooling: Installation

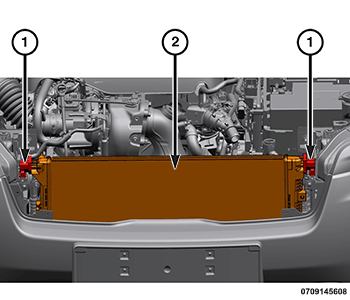

GC0186542Courtesy of CHRYSLER GROUP, LLC
  1. Install the radiator (2) into the lower mounts and engage the upper radiator isolators (1) to the mount.

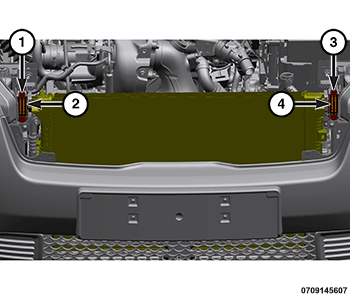

    GC0186371Courtesy of CHRYSLER GROUP, LLC
  2. Install the upper right side radiator mount cover (1) and securely tighten the two bolts (2).
  3. Install the upper left side radiator mount cover (4) and securely tighten the two bolts (3).

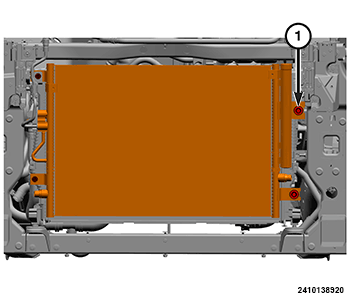

    GC0186773Courtesy of CHRYSLER GROUP, LLC
  4. Install the condenser to the radiator and securely tighten the bolts (1).

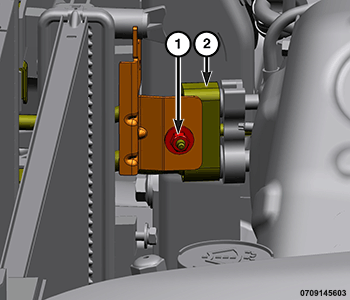

    GC0187037Courtesy of CHRYSLER GROUP, LLC
  5. Install the nut (1) securing the A/C discharge and liquid line junction block to the bracket (2) and securely tighten.

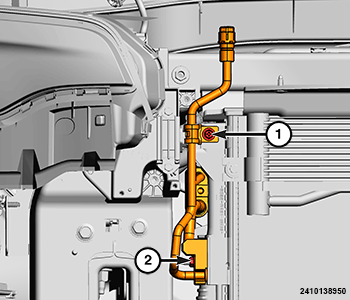

    GC0187061Courtesy of CHRYSLER GROUP, LLC
  6. Install the bolt (1) securing the A/C line to the radiator and securely tighten.
  7. Connect the A/C pressure switch wire harness connector.

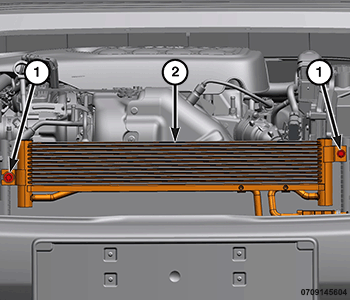

    GC0187135Courtesy of CHRYSLER GROUP, LLC
  8. Install the transmission cooler (2) and tighten the bolts to (1) the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  9. Install the cooling fan. Refer to INSTALLATION  .

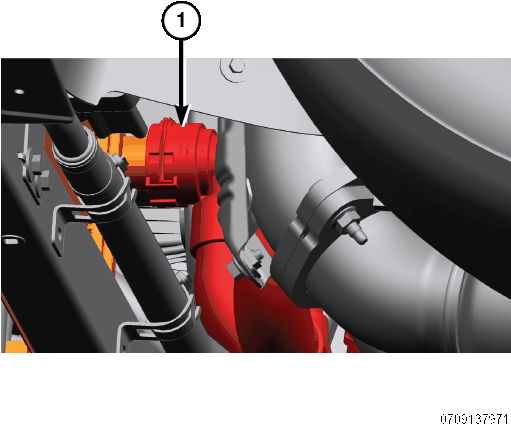

    GC0187141Courtesy of CHRYSLER GROUP, LLC
  10. Connect the lower radiator hose.
  11. Fill the cooling system. Refer to COOLANT SYSTEM AIR EVACUATION  .
  12. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
