Cover(S), Engine Timing: Installation

WARNING: This page is about a different variant/trim than selected.
GC0182853Courtesy of CHRYSLER GROUP, LLC
  1. Clean the engine timing cover flange (1), cylinder head and engine block mating surfaces with isopropyl alcohol in preparation for sealant application.
    CAUTION:

    Engine assembly requires the use of a unique sealant that is compatible with engine oil. Using a sealant other than Mopar® Threebond Engine RTV Sealant may result in engine fluid leakage.

    CAUTION:

    Following the application of Mopar® Threebond Engine RTV Sealant to the gasket surfaces, the components must be assembled within 10 minutes and the attaching fasteners must be tightened to specification within 45 minutes. Prolonged exposure to the air prior to assembly may result in engine fluid leakage.

  2. Apply a 3 to 4 mm bead of Mopar® Threebond Engine RTV Sealant (2) to the timing chain cover flange (1). Apply the bead of sealant 0 - 2 mm from the edge of the chamfer (3).
    NOTE:

    The bead of sealant must be uninterrupted.

    GC0187218Courtesy of CHRYSLER GROUP, LLC

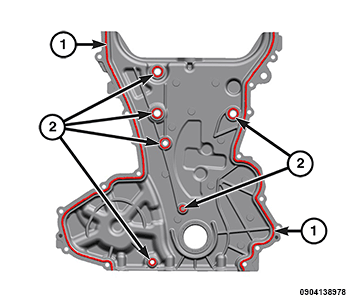

  3. Apply a 2 to 3 mm bead of Mopar® Threebond Engine RTV Sealant to the perimeter of the six locations (2) indicated in the central zone of the timing chain cover.
    NOTE:

    The bead of sealant must be uninterrupted.

    GC0186293Courtesy of CHRYSLER GROUP, LLC

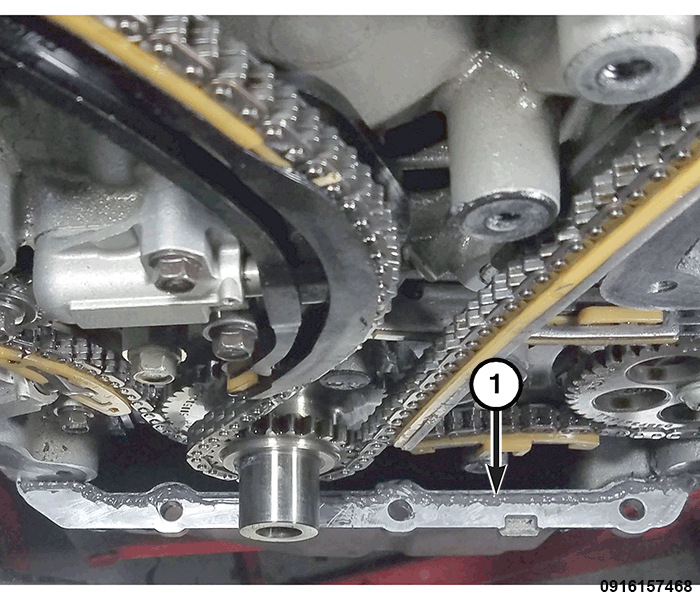

    NOTE:

    Remove the protective cover from the oil pan prior to timing chain cover installation.

  4. Apply a 2 to 3 mm bead (1) of Mopar® Threebond Engine RTV Sealant to the oil pan flange as shown in illustration.
    NOTE:

    The bead of sealant must be uninterrupted.

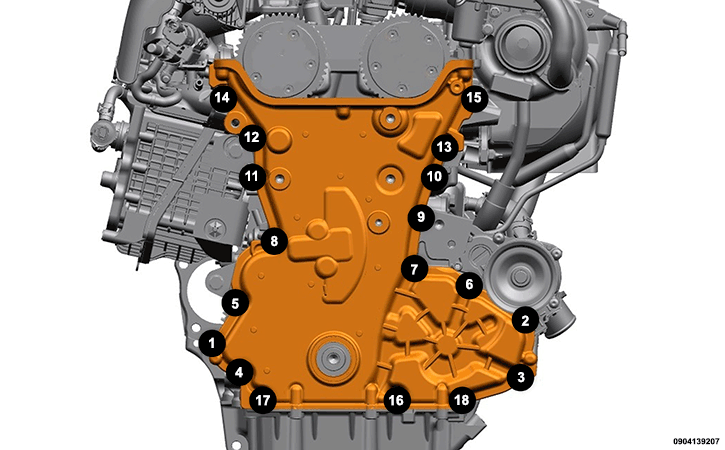

    Fig 1: Timing Chain Cover Screws Tightening Sequence
    GC0183405Courtesy of CHRYSLER GROUP, LLC
  5. Keeping the timing chain cover in a vertical position with a slight outward tip at the top of the cover, load the timing chain cover at the bottom, along the oil pan and rock the top of the cover into place, being extremely careful not to wipe or disturb the Mopar® Threebond Engine RTV Sealant pattern.
  6. Align the locator pins on the engine block to the timing chain cover.
  7. Install the timing chain cover and tighten the screws in the sequence shown in illustration to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
    GC0186228Courtesy of CHRYSLER GROUP, LLC

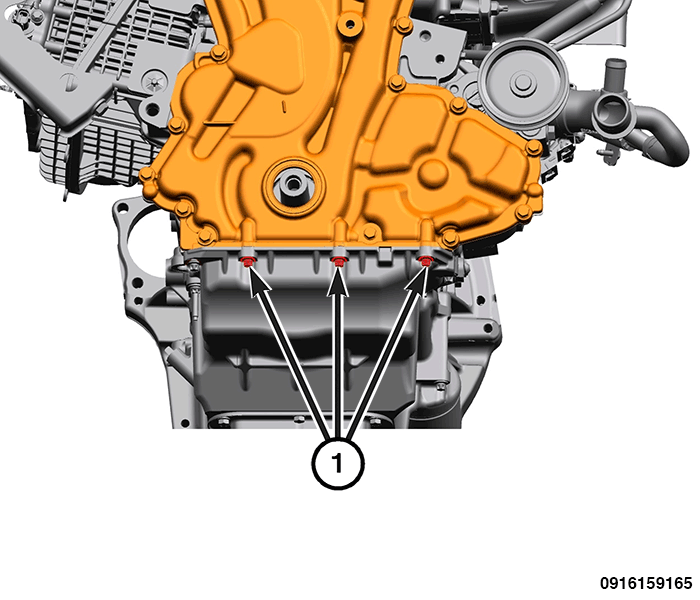

  8. Install the oil pan to timing chain cover bolts (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
  9. Install the right engine mount bracket and right engine mount insulator. Refer to INSTALLATION , and INSTALLATION  .
    GC0181007Courtesy of CHRYSLER GROUP, LLC

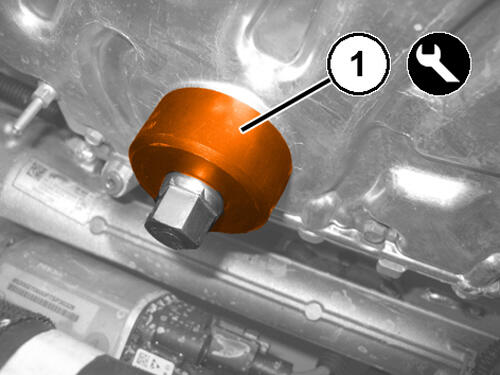

  10. If removed, install a NEW  front crankshaft oil seal in the timing chain cover using (special tool #9506, Installer, Oil Seal) (1).
  11. Install the vibration damper. Refer to INSTALLATION  .
  12. Install the accessory drive belt. Refer to INSTALLATION .
  13. Install the cylinder head cover. Refer to INSTALLATION  .
  14. If required, change the engine oil and filter. Refer to ENGINE/LUBRICATION/OIL/STANDARD PROCEDURE .
  15. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  16. Remove the support and lower the vehicle.
