Removal And Installation: Installation

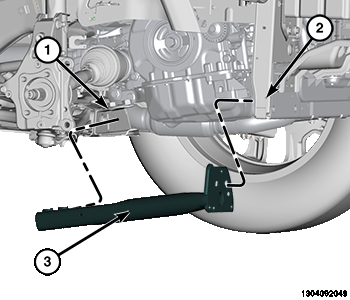

GC0178886Courtesy of CHRYSLER GROUP, LLC
  1. Install the front of the load beam (3) onto the radiator support (2) and install the rear into the front crossmember (1).

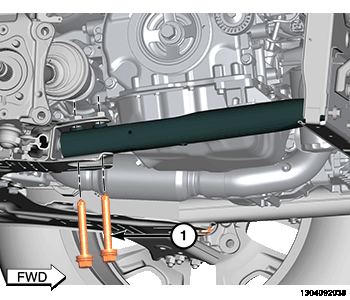

    GC0179124Courtesy of CHRYSLER GROUP, LLC
  2. Install the rear bolts (1).

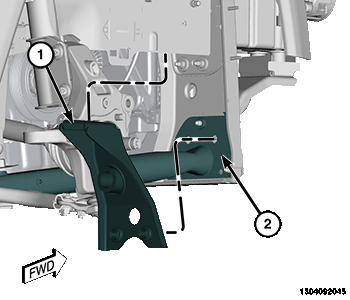

    GC0179231Courtesy of CHRYSLER GROUP, LLC
  3. Install the tow hook bracket (1) onto the front of the lower load beam (2).

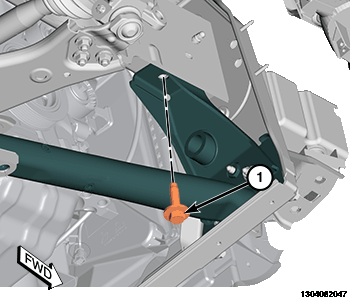

    GC0179373Courtesy of CHRYSLER GROUP, LLC
  4. Install the upper bolt (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

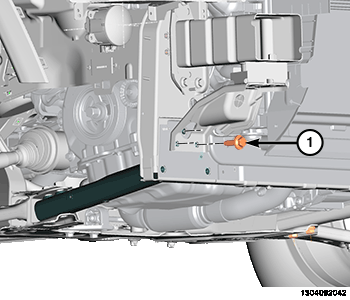

    GC0179417Courtesy of CHRYSLER GROUP, LLC
  5. Install the three upper bolts (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

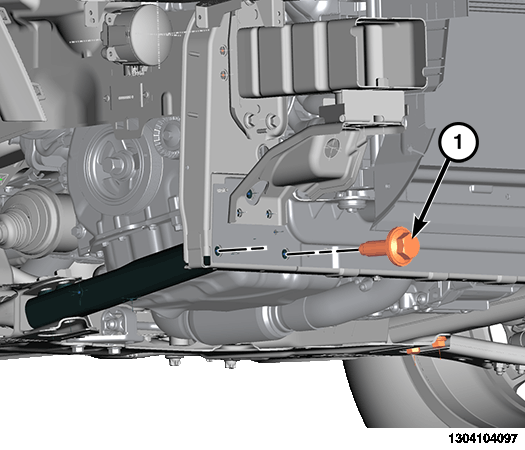

    GC0179262Courtesy of CHRYSLER GROUP, LLC
  6. Install the lower bolts (1) and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .

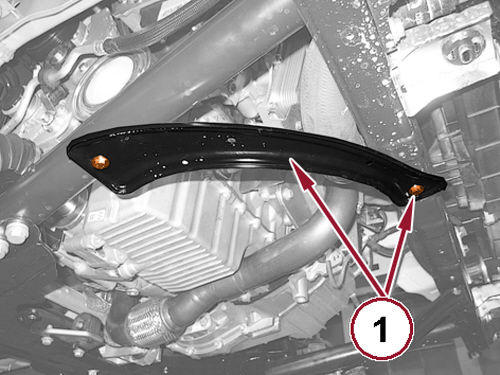

    GC0164648Courtesy of CHRYSLER GROUP, LLC
  7. Position the reinforcement brackets (1) back into place, install the bolts and tighten to the proper torque specification. Refer to TECHNICAL SPECIFICATIONS .
  8. If equipped, install front tow hook(s). Refer to HOOK(S), TOW, FRONT, REMOVAL AND INSTALLATION  .
  9. Install the belly pan. Refer to BELLY PAN, REMOVAL AND INSTALLATION .
