Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
  2. Remove the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .

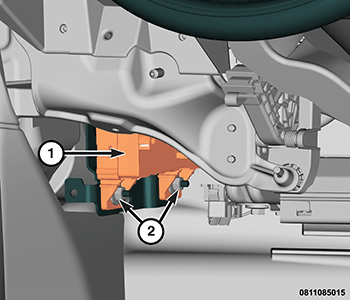

    GC0177484Courtesy of CHRYSLER GROUP, LLC
  3. Remove the two lower Body Control Module (BCM) (1) retaining bolts (2).
    NOTE:

    There are no upper mounting bolts. The BCM clips into the upper portion of the bracket.

  4. Reposition the BCM until the BCM connectors are visible.
  5. Disconnect the wire harness connectors from the BCM.
  6. Remove the BCM from the vehicle.
