Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radio amplifier. Refer to AMPLIFIER, REMOVAL AND INSTALLATION .
    GC0177878Courtesy of CHRYSLER GROUP, LLC

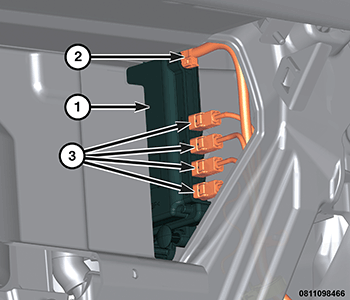

  2. Disconnect all wire harness connectors (2, 3) from the Central Vision Processing Module (CVPM) (1).
    GC0178075Courtesy of CHRYSLER GROUP, LLC

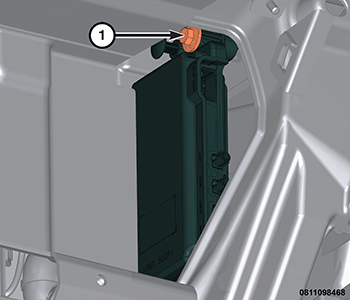

  3. Remove the upper fastener (1) securing the CVPM to the body.
    GC0177815Courtesy of CHRYSLER GROUP, LLC

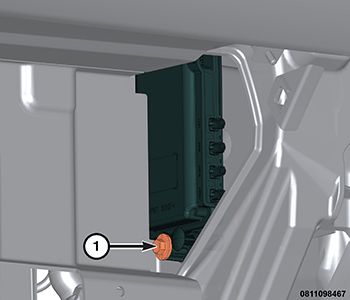

  4. Remove the lower fastener (1) securing the CVPM to the body.
    GC0178012Courtesy of CHRYSLER GROUP, LLC

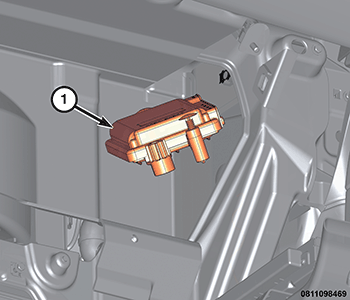

  5. Remove the CVPM (1) from the vehicle. The tree style fasteners come off with the module.
