Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

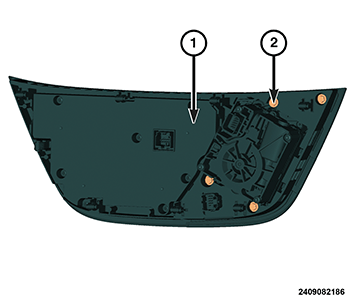

GC0178080Courtesy of CHRYSLER GROUP, LLC
  1. Position the ESM in the ICS (1), install the four ESM bolts (2) and tighten securely.
  2. Connect the wire harness connectors to the ESM and ICS assembly.

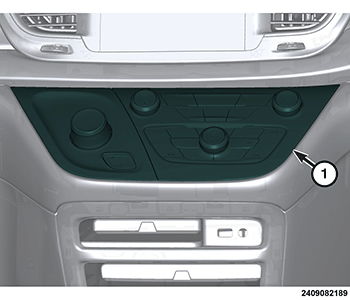

    GC0177333Courtesy of CHRYSLER GROUP, LLC
  3. Install the ICS (1) in the vehicle. Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
  5. Release the parking brake.
