Removal And Installation: Removal

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Disconnect and isolate the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), disconnect the IBS connector first before disconnecting the negative battery cable.
    GC0177333Courtesy of CHRYSLER GROUP, LLC
  3. Remove the Integrated Center Stack (ICS) (1). Refer to MODULE, INTEGRATED CENTER STACK (ICSM), REMOVAL AND INSTALLATION .
    GC0178080Courtesy of CHRYSLER GROUP, LLC
  4. Remove the four Electronic Shift Module (ESM) bolts (2) from the ICS (1).
    GC0188576Courtesy of CHRYSLER GROUP, LLC

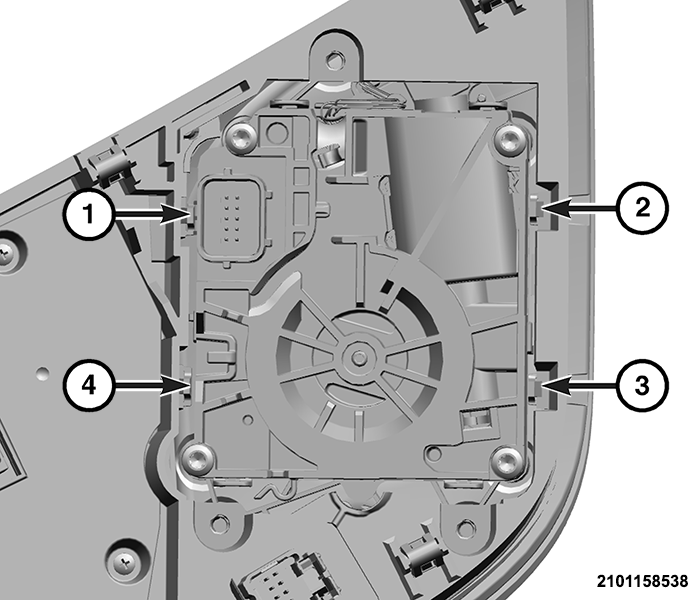

  5. Release the four tabs (1, 2, 3, 4) retaining the ESM to the ICS.
  6. Remove the ESM from the ICS.
