Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

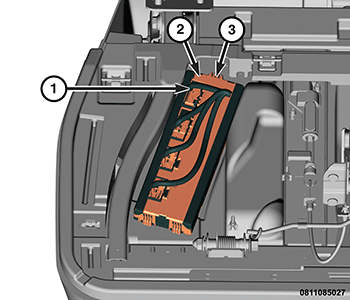

- Position the fold and stow module (2) to the bottom of the seat for installation.
- Install the stow and go module engaging the rear tabs first before engaging the front tab (3) on the module to the seat.
- Connect the wiring harness connector (1) to the fold and stow module.

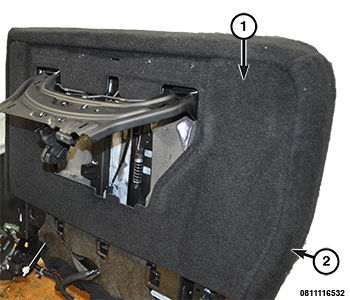

- Install the seat bottom panel (1).
- Unstow the 60 percent 3rd row seat assembly.
- Connect the negative battery cable.
When the seat is replaced or the module is updated or replaced, perform the following calibration procedures using the scan tool:
- Calibrate Full Recline
- Calibrate Stow
- Write Left Rear Seat Position
- Write Right Rear Seat Position
