Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

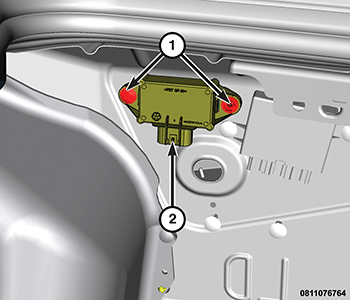

- Position the Fuel Pump Control Module (FPCM) to the forward part of the left rear wheel housing.
- Install and tighten the fasteners (1) that secure the FPCM to the left rear wheel housing.
- Connect the body wire harness connector (2) to the FPCM connector receptacle.
- Install the trim onto the left rear quarter panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
- Connect the negative battery cable.
