Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

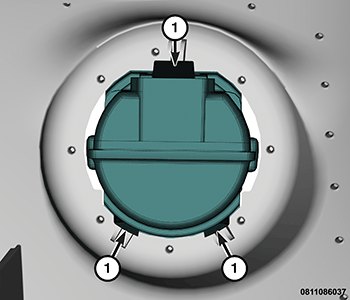

GC0177552Courtesy of CHRYSLER GROUP, LLC
  1. Align and seat the KIN to the trim panel until the tabs (1) are engaged securing the KIN in the proper installed position.
  2. Install the center instrument trim panel. Refer to PANEL, INSTRUMENT PANEL TRIM, CENTER, REMOVAL AND INSTALLATION .

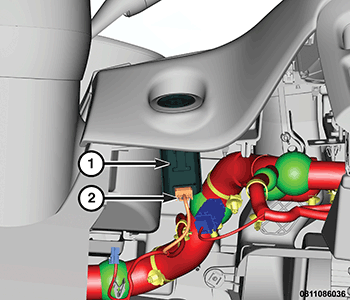

    GC0177301Courtesy of CHRYSLER GROUP, LLC
  3. Connect the wiring harness connector (2) to the back of the KIN (1).
  4. Install the steering column opening cover. Refer to COVER, STEERING COLUMN OPENING, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
