Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

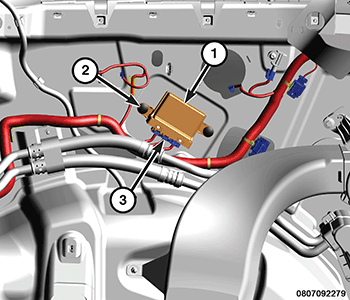

GC0177893Courtesy of CHRYSLER GROUP, LLC
  1. Position the Park Assist Module (PAM) (1) to the right quarter inner panel, to the rear of the C-pillar and above the right rear wheel house.
  2. Install the fasteners (2) that secure the PAM (1) to the right quarter inner panel.
  3. Connect the wire harness connectors (3) to the PAM connector receptacles.
  4. Install the right quarter inner trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
