Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Power Inverter Module (PIM) in the vehicle.

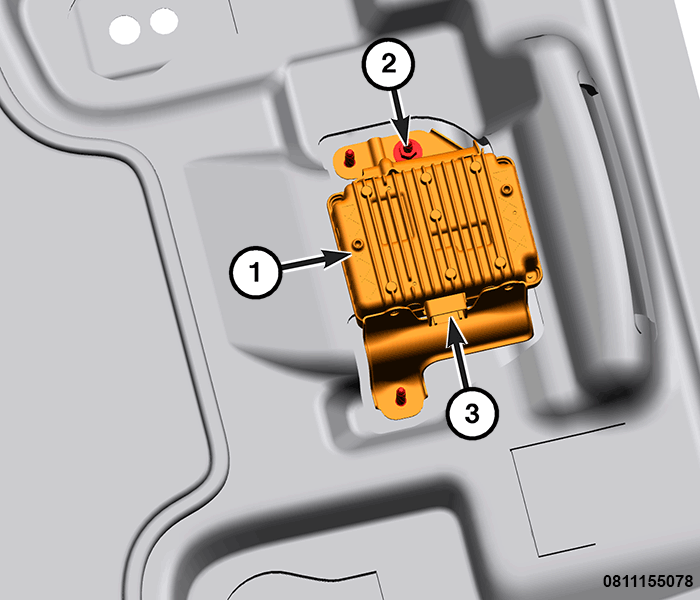

    GC0188573Courtesy of CHRYSLER GROUP, LLC
  2. Install the PIM mounting fastener (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  3. Connect the wire harness connector to the PIM connector receptacle (3).
  4. Install the PIM cover and remaining fasteners and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS  .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
