Removal And Installation: Installation

WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.

HORIZONTAL

Courtesy of CHRYSLER GROUP, LLC

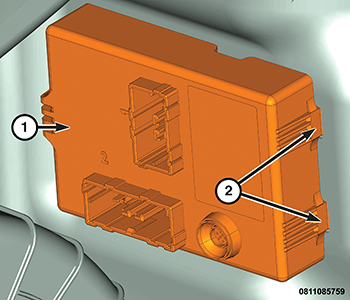

Position the PLGM (1) to the rear quarter panel for installation.
Insert the alignment mounting tab into the locating slot on the inner quarter panel.
Seat the PLGM against the panel, verifying that the rear alignment mounting tabs (2) are engaged to the panel.

Courtesy of CHRYSLER GROUP, LLC

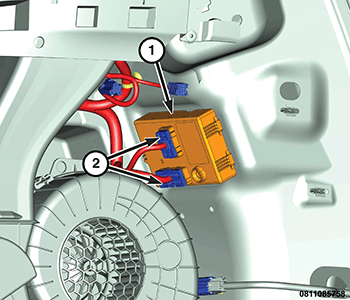

Connect the wire harness connectors (2) to the PLGM (1).
Install the right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Perform the liftgate calibration procedure. Refer to POWER LIFTGATE CALIBRATION .

VERTICAL

Courtesy of CHRYSLER GROUP, LLC

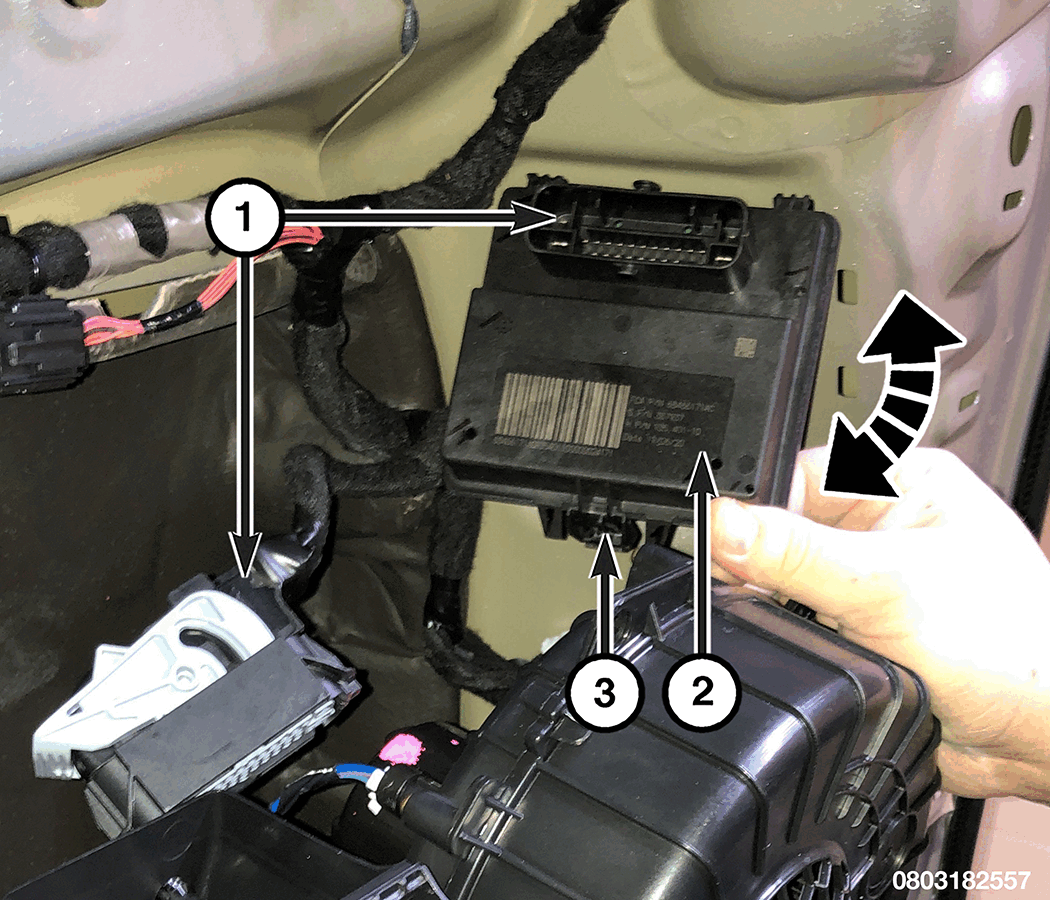

Install the PLGM (2) and verify that the alignment mounting tabs are engaged to the panel.
Connect the wire harness connectors (1) to the PLGM (2).

Courtesy of CHRYSLER GROUP, LLC

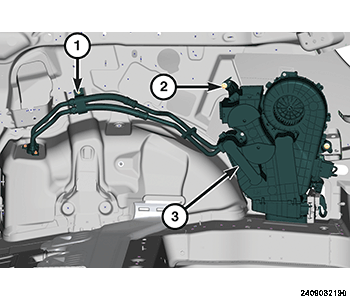

Position the rear HVAC housing (3) into the vehicle.
Install and tighten the two HVAC housing to inner quarter panel bolts (2).
Install the rear ceiling distribution duct. Refer to DUCT, CEILING DISTRIBUTION, REMOVAL AND INSTALLATION .
Install the rear floor distribution duct. Refer to DUCT, FLOOR DISTRIBUTION, REAR, REMOVAL AND INSTALLATION .
Install the right rear quarter trim panel. Refer to PANEL, QUARTER TRIM, REMOVAL AND INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

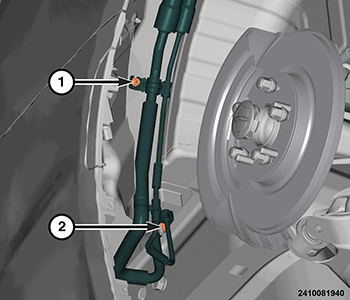

Install and securely tighten the A/C line to body nut (1).
Install the right rear wheelhouse splash shield. Refer to SHIELD, SPLASH, REAR WHEELHOUSE, REMOVAL AND INSTALLATION .
Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
Perform the liftgate calibration procedure. Refer to POWER LIFTGATE CALIBRATION .
