Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Replace and Program the module(s) per the RF-Hub, BCM, PCM FOBik and ELV Replacement and Programming Order Guide. Refer to STANDARD PROCEDURE .

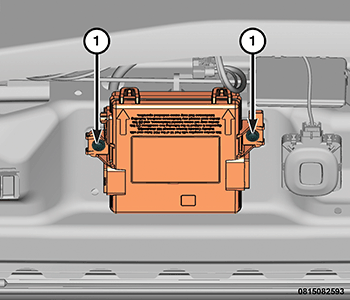

- Position the RFHM to the vehicle and install the fasteners (1).
- If equipped, connect the remote start antenna connector.
- Connect the wire harness electrical connectors.
- Install the headliner. Refer to HEADLINER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
NOTE:
Program the RFHM. Refer to MODULE, RADIO FREQUENCY (RF HUB), MODULE PROGRAMMING .
