Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
When replacing a Transmission Control Module (TCM), the TCM must be programmed. Failure to properly program the TCM may result in the illumination of the Malfunction Indicator Lamp (MIL) and setting DTC(s).
NOTE:
The Valve Body Solenoid Learn procedure must be performed when the TCM and/or valve body is replaced. Failure to perform the Valve Body Solenoid Learn procedure will result in reduced shift quality.
- Place the Transmission Control Module (TCM) in position on the transmission.

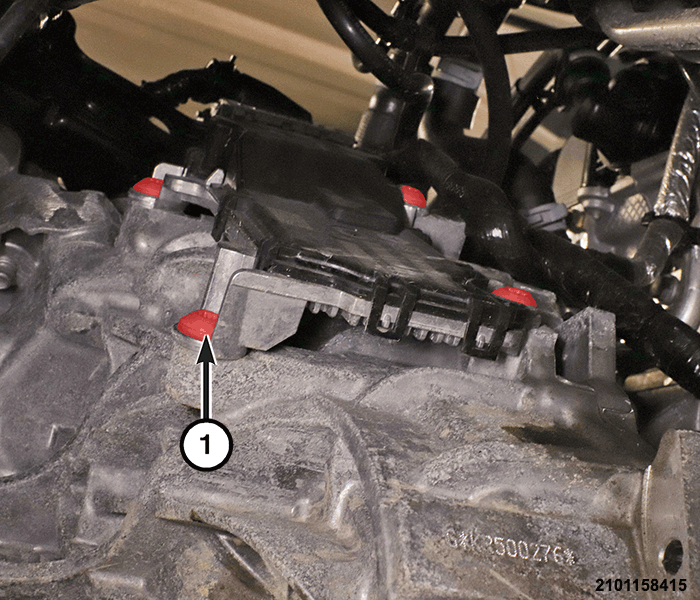

- Install the TCM bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Connect the wire harness connector to the TCM.
- Engage the wire harness connector lock (1).
- Install fastener that retains wire harness bracket to transmission and tighten securely.
- Install the air cleaner assembly. Refer to AIR CLEANER, REMOVAL AND INSTALLATION .
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector to the negative battery cable.
- Perform the TCM programming and verification. Refer to MODULE, TRANSMISSION CONTROL (TCM), MODULE PROGRAMMING .
