Wheel Speed Sensor

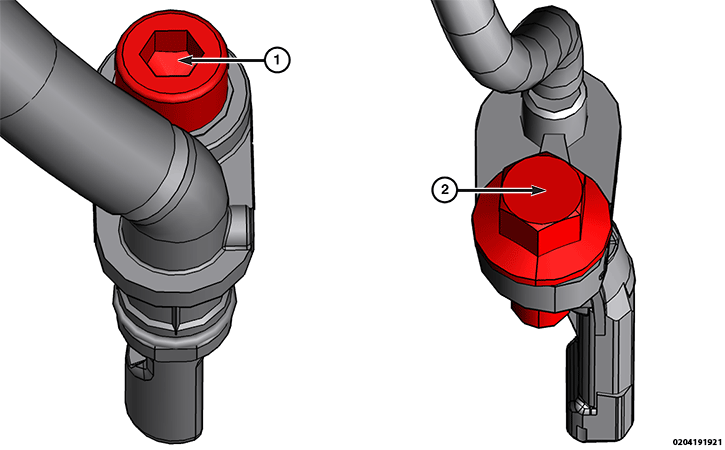

GC0205896Courtesy of CHRYSLER GROUP, LLC
TORQUE SPECIFICATIONS - WHEEL SPEED SENSOR

CALLOUT DESCRIPTION SPECIFICATION COMMENT
1 Front Wheel Speed Sensor Bolt 7 N. m (62 In. Lbs.)  -
2 Rear Wheel Speed Sensor Bolt 10 N. m (7 Ft. Lbs.)  -
