Removal And Installation: Installation
WARNING: This page is about a different car, the 2022 Chrysler Voyager and 2022 Chrysler Pacifica. However, it is still accessible from the selected car via links, so may be relevant.
- Secure the RDM on a suitable jack and secure it with chains.
- Position the RDM in the vehicle.

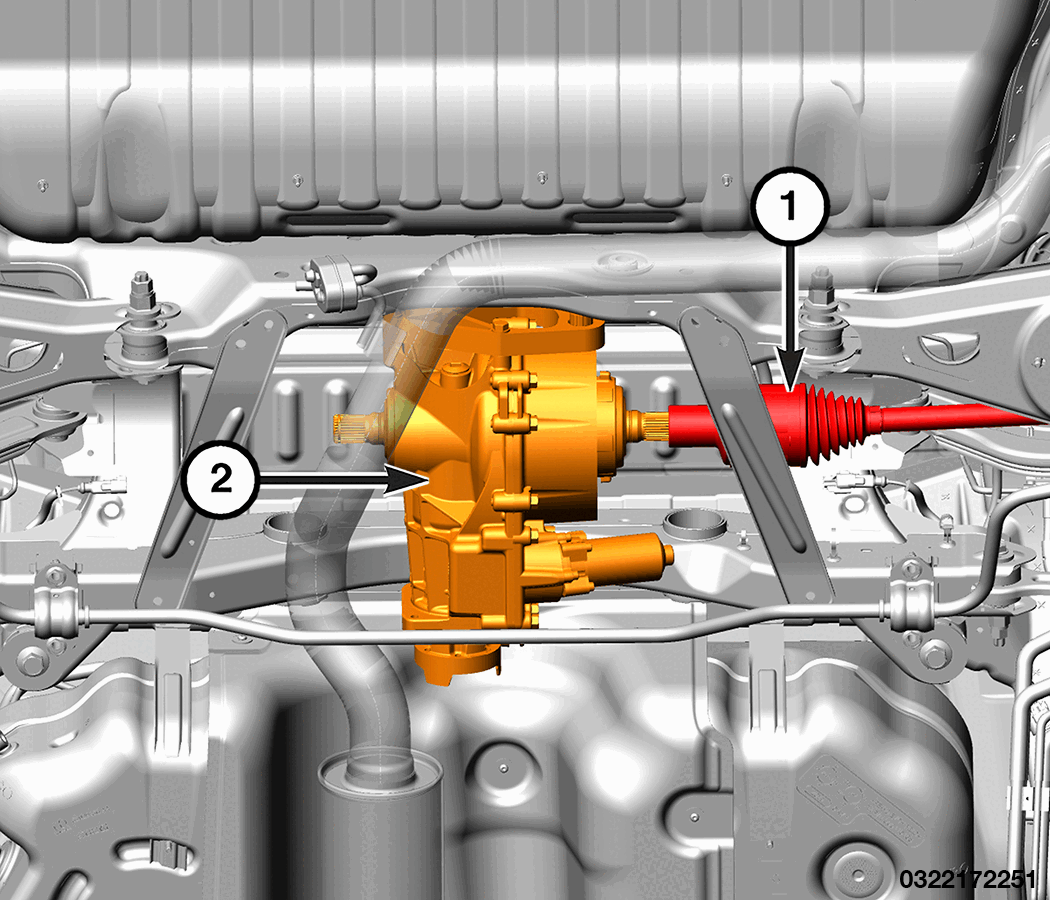

- Install the RH halfshaft on the RDM.
- Raise the RDM with the RH halfshaft into position.

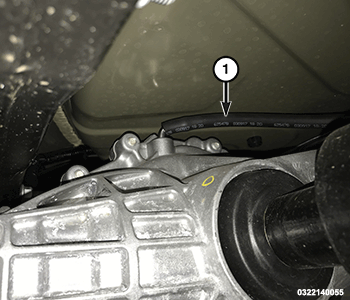

- Connect the vent hose (1).

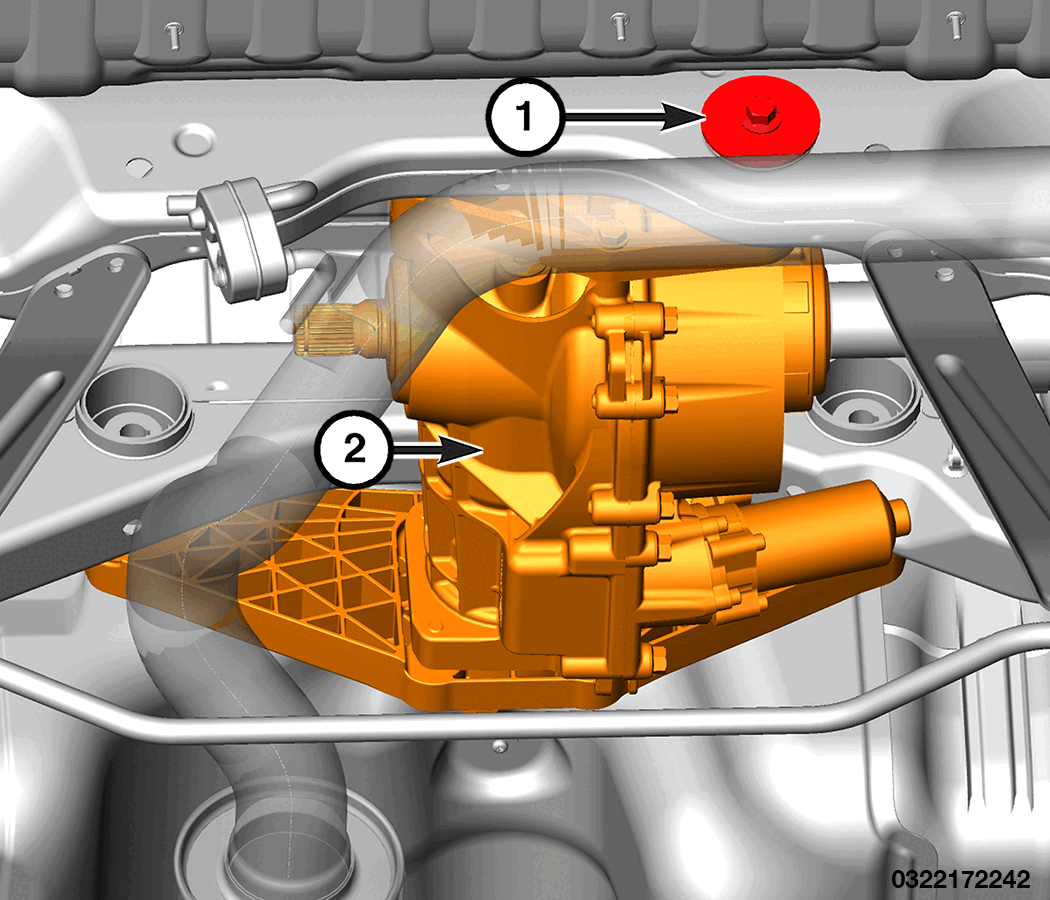

- Install rear RDM isolator bolt (1) hand tight.

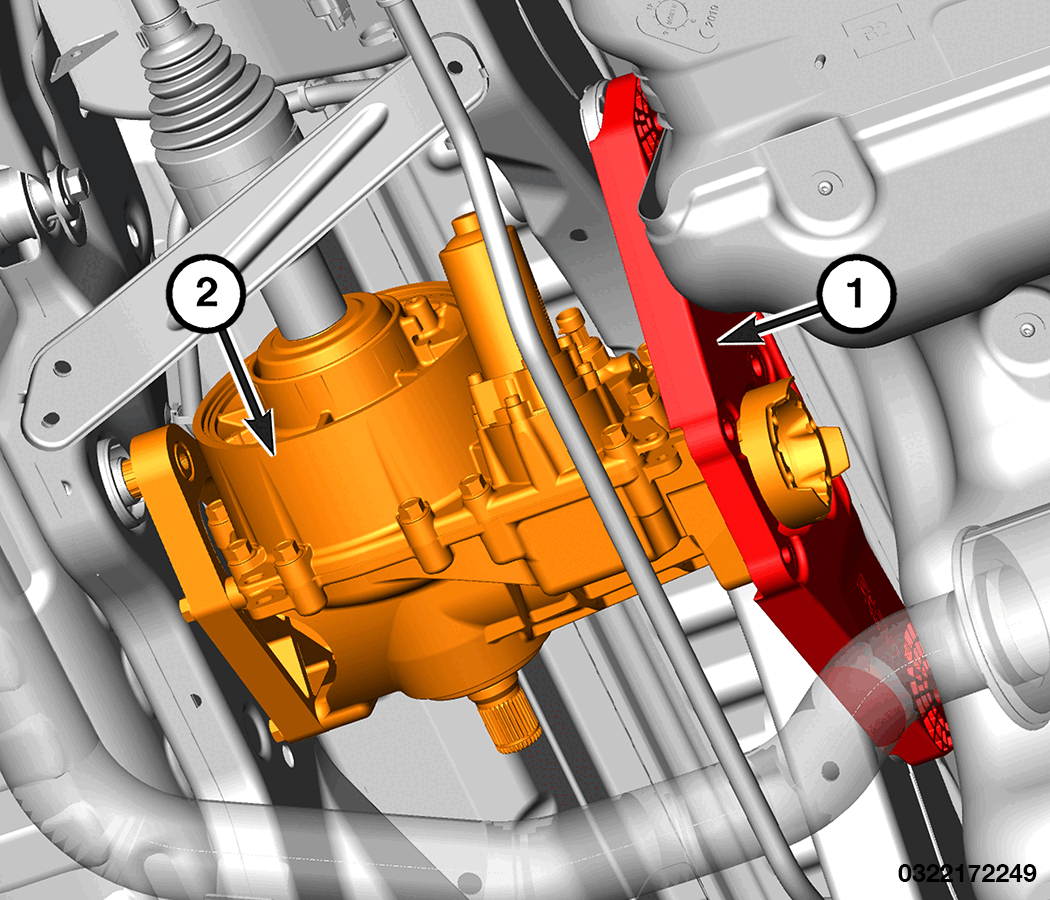

- Place the RDM bracket (1) in the vehicle.
- Install the RDM bracket to RDM bolts (2) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

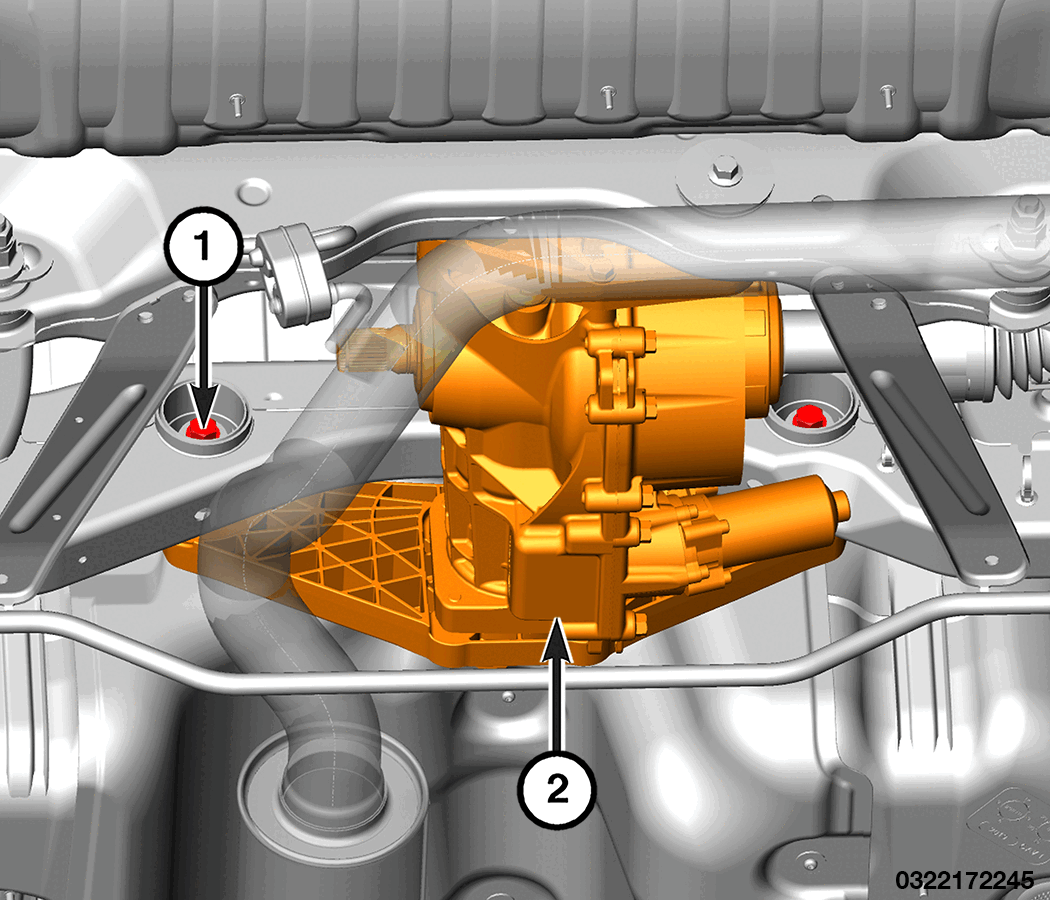

- Install the front RDM bracket to isolator bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.
- Tighten the rear RDM to isolator bolt (1) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
- Install the rear left halfshaft. Refer to REMOVAL AND INSTALLATION .
- Install the RH rear halfshaft hub nut (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).NOTE:
The six bolts that are used to secure the propeller shaft to the RDM input flange MUST be replaced.
NOTE:Use of Anti-seize compound is prohibited.

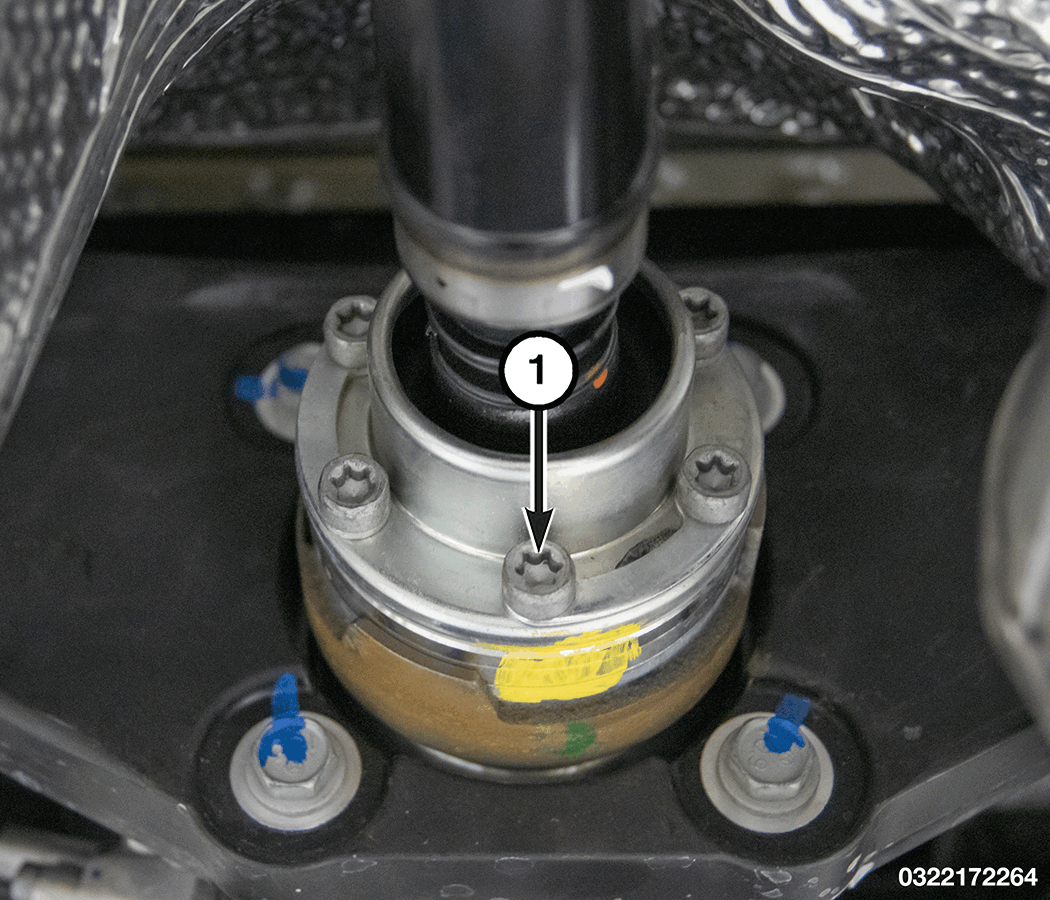

- Connect the propeller shaft to the RDM, align the index marks made during removal, install NEW

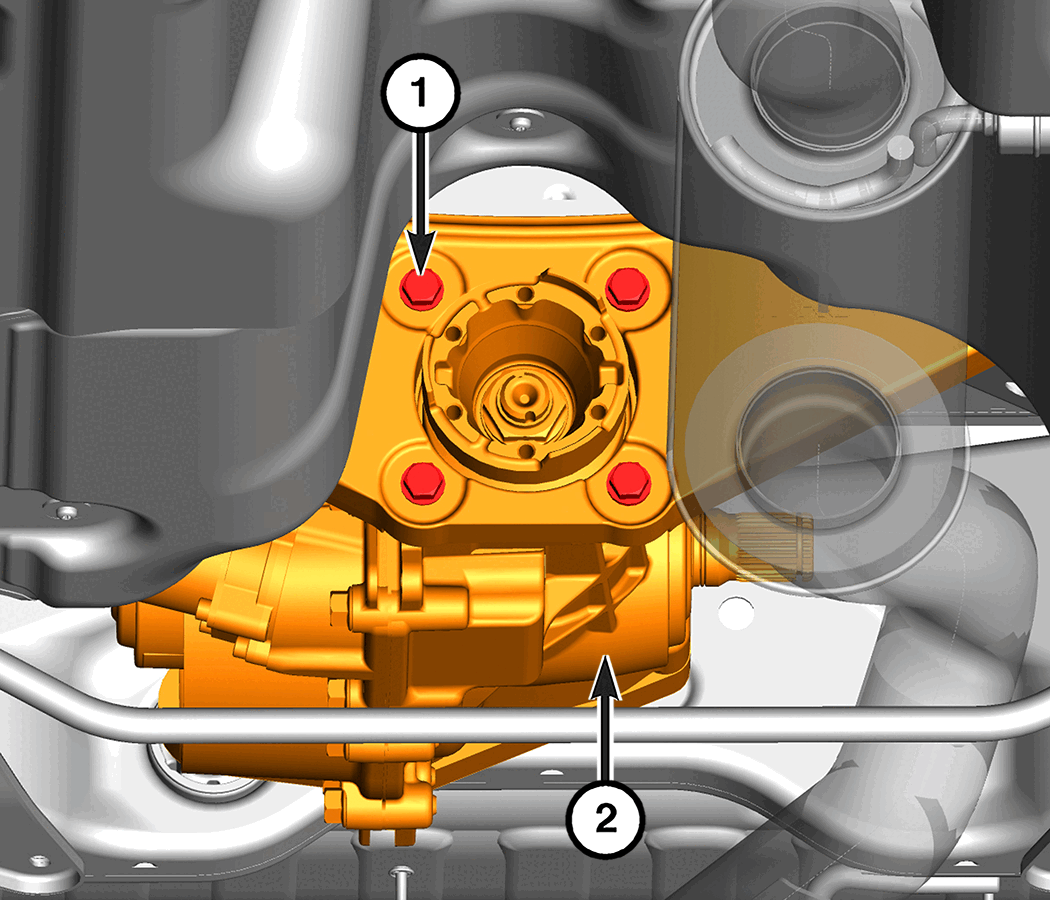

rear propeller shaft bolts (1) and tighten to the proper torque specification. Refer to TORQUE SPECIFICATIONS
.

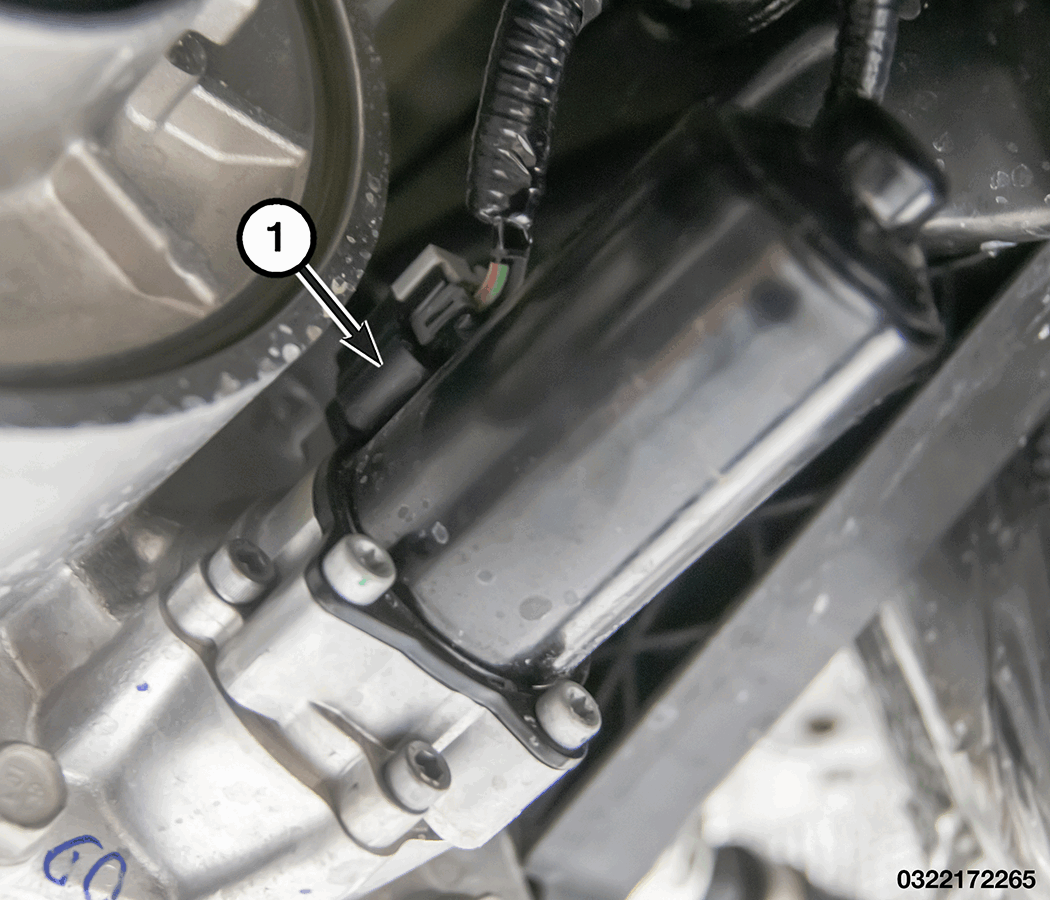

- Connect the pump motor wire harness connector (1).

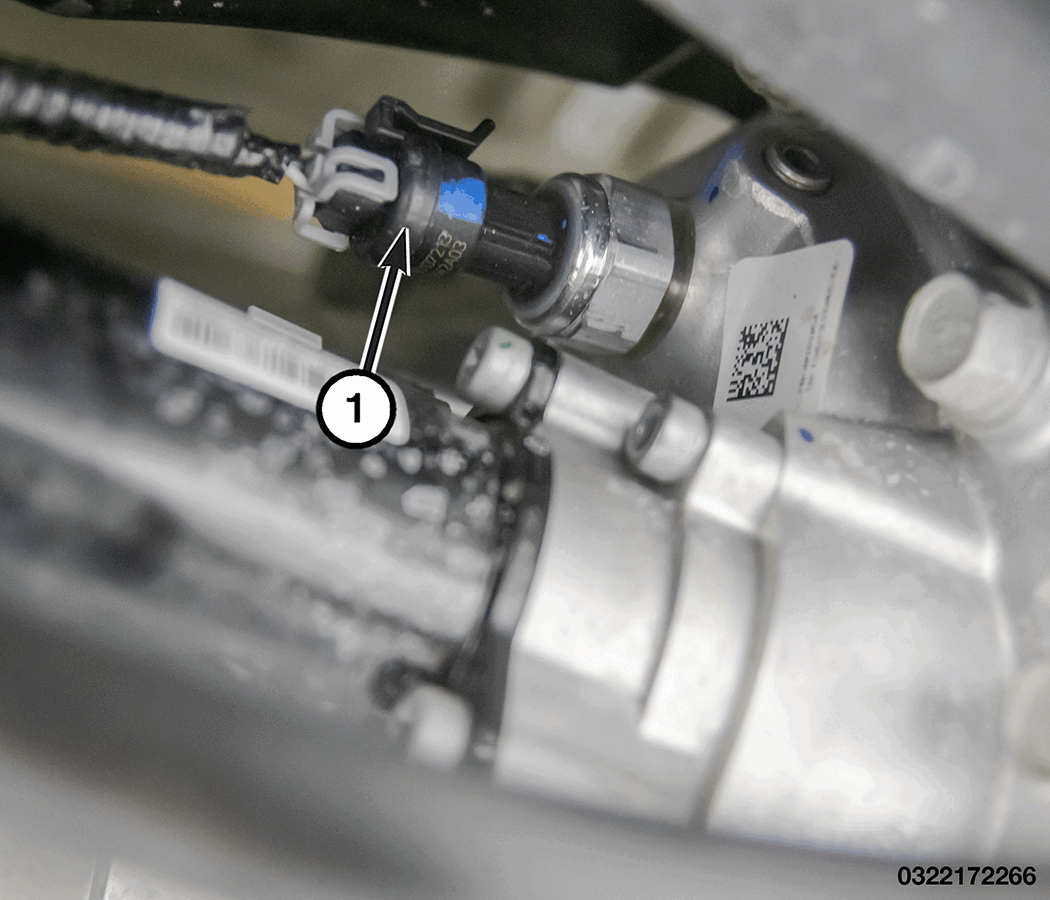

- Connect the pressure sensor wire harness connector (1).
- Fill the RDM with differential fluid. Refer to FLUID, DIFFERENTIAL, STANDARD PROCEDURE .
- Remove the support and lower the vehicle.
- Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
