Third Row

REMOVAL

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

WARNING:

To avoid serious or fatal injury during and following any seat belt or child restraint anchor service, carefully inspect all seat belts, buckles, mounting hardware, retractors, tether straps, and anchors for proper installation, operation, or damage. Replace any belt that is cut, frayed, or torn. Straighten any belt that is twisted. Tighten any loose fasteners. Replace any belt that has a damaged or ineffective buckle or retractor. Replace any belt that has a bent or damaged latch plate or anchor plate. Replace any child restraint anchor or the unit to which the anchor is integral that has been bent or damaged. Never attempt to repair a seat belt or child restraint component. Always replace damaged or ineffective seat belt and child restraint components with the correct, new and unused replacement parts listed in the Mopar® Parts Catalog. Failure to follow these instructions may result in possible serious or fatal injury.

  1. Remove the upper D-pillar trim. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .

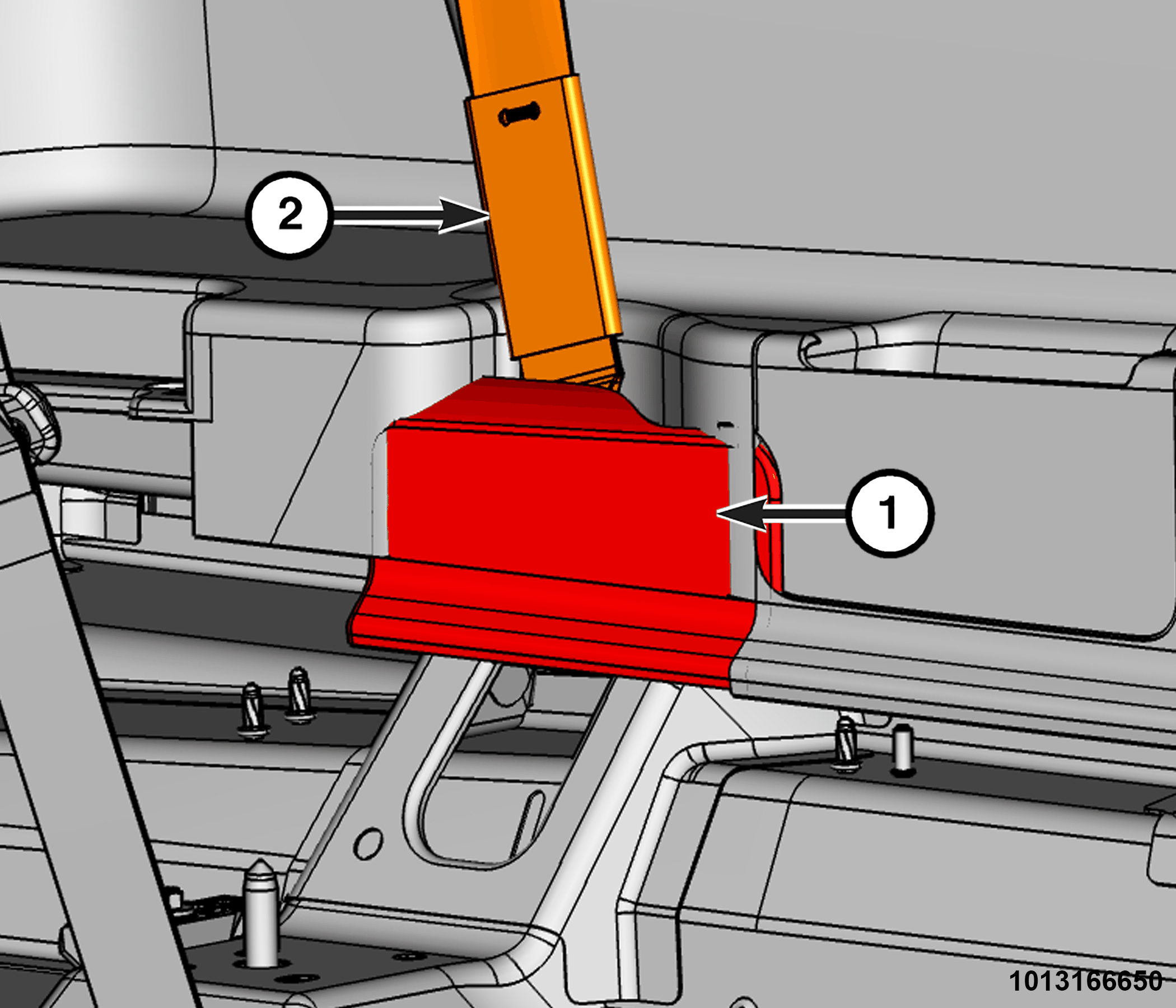

    GC0201822Courtesy of CHRYSLER GROUP, LLC
    1 - Trim Panel
    2 - Seat Belt
  2. Remove the trim panel from the third row seat belt anchor.

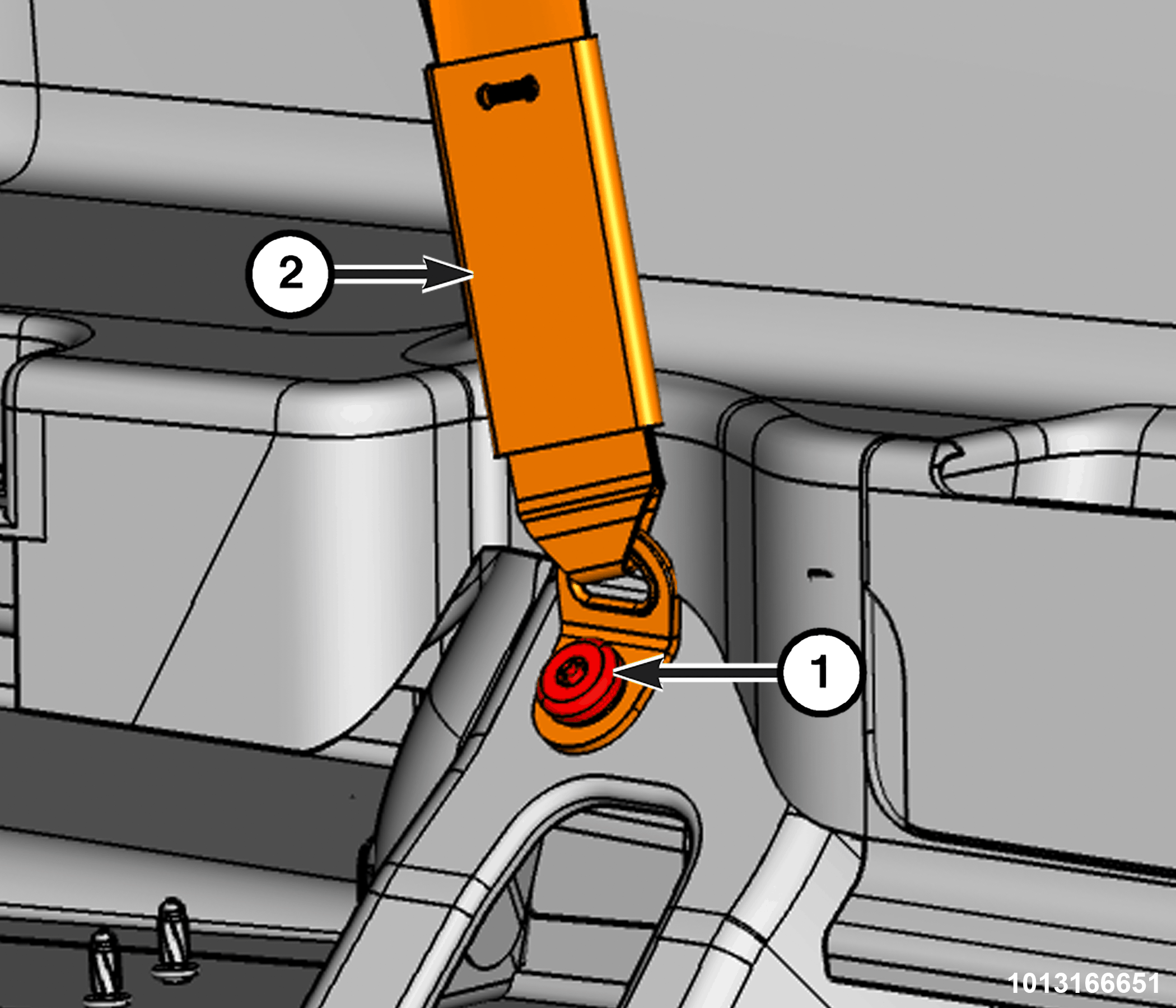

    GC0200840Courtesy of CHRYSLER GROUP, LLC
    1 - Bolt
    2 - Seat Belt
  3. Remove the bolt from the third row seat belt anchor.

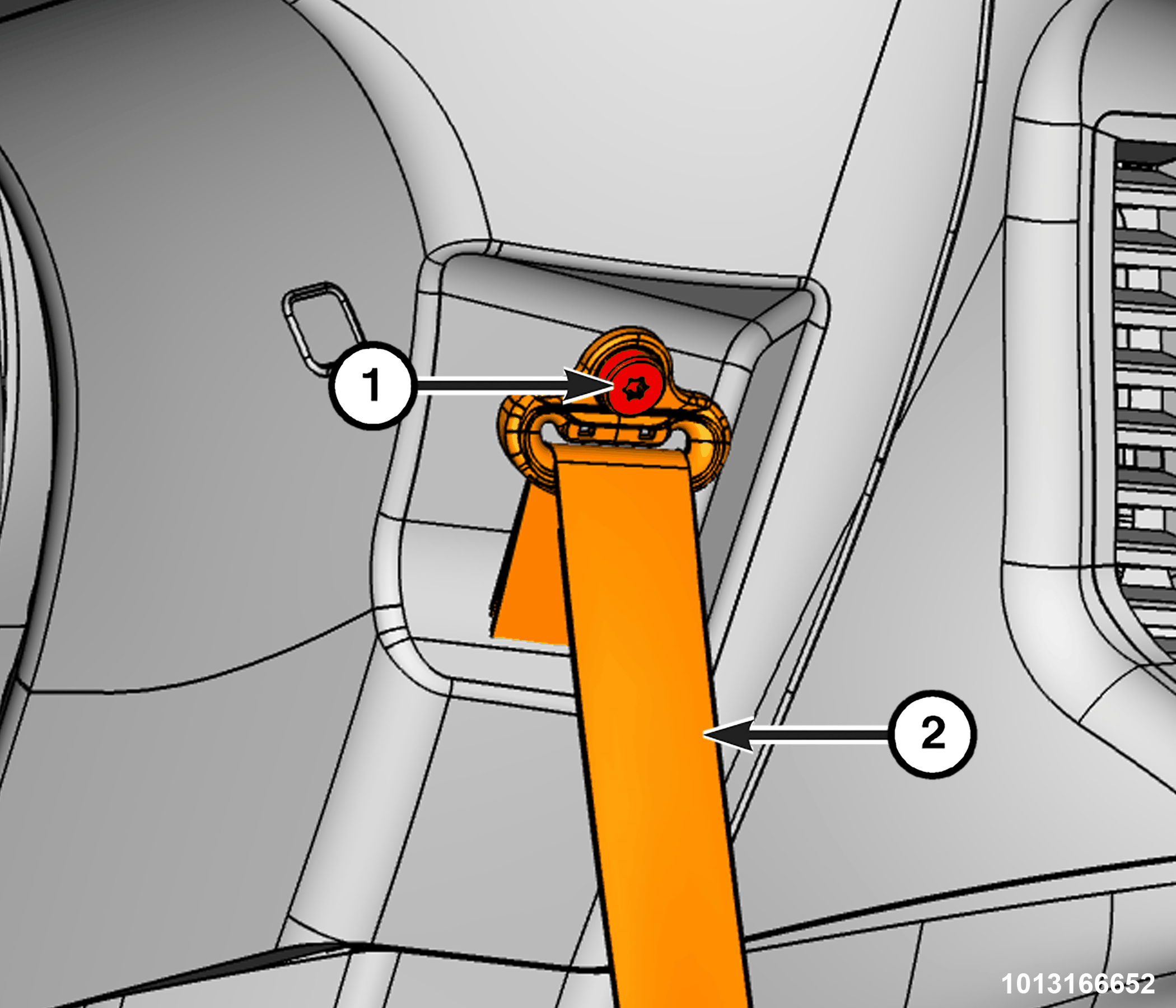

    GC0201786Courtesy of CHRYSLER GROUP, LLC
    1 - Bolt
    2 - Seat Belt
  4. Remove the bolt from the third row seat belt turning loop.

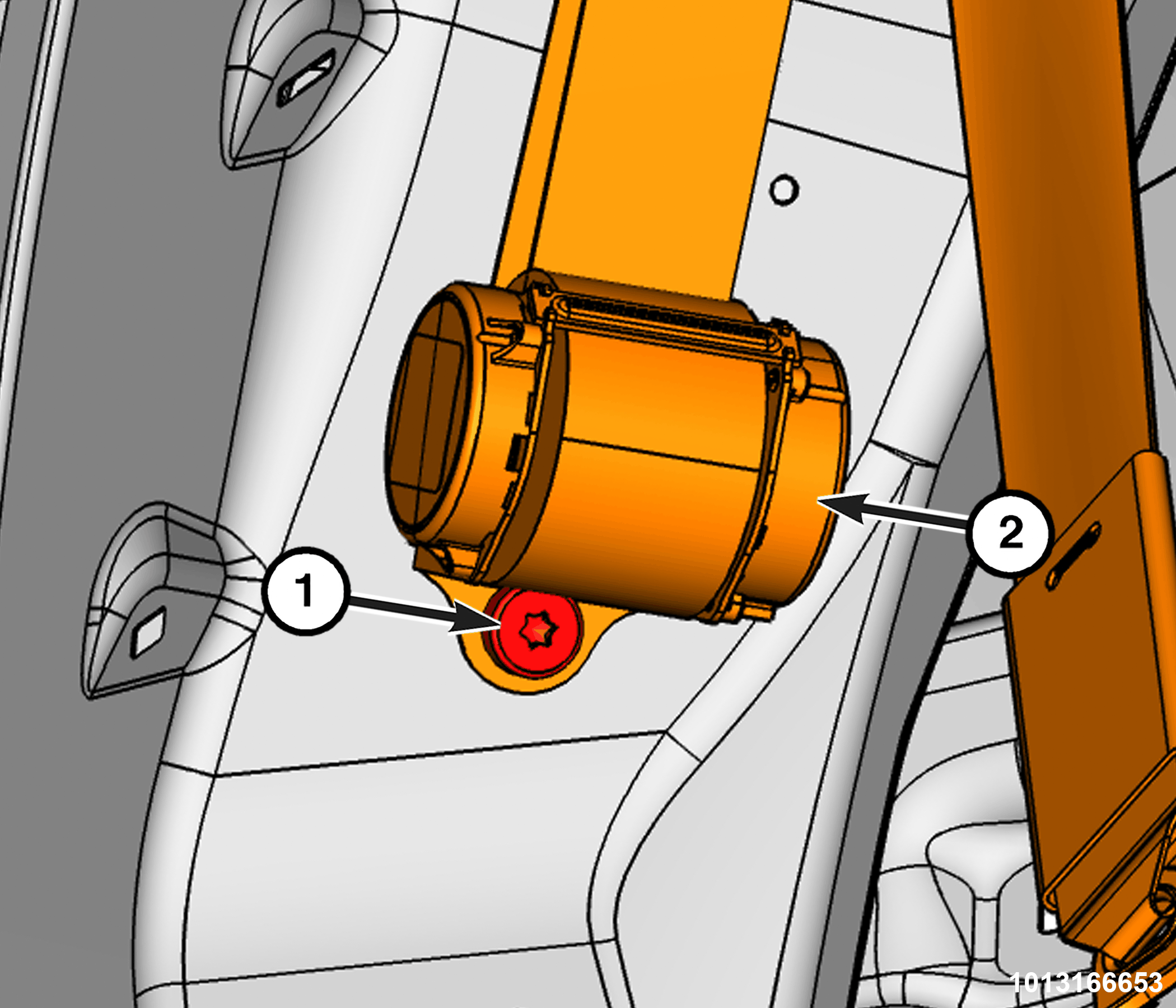

    GC0200808Courtesy of CHRYSLER GROUP, LLC
    1 - Bolt
    2 - Retractor
  5. Remove the bolt from the third row seat belt retractor.
  6. Remove the third row seat belt retractor from the vehicle.

INSTALLATION

  1. Position the third row seat belt retractor to the vehicle.
  2. Install the third row seat belt retractor bolt and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  3. Position the seat belt turning loop to the vehicle. Be certain the seat belt webbing between the retractor and the turning loop is not twisted.
  4. Install the third row seat belt turning loop bolt and tighten to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  5. Position the third row seat belt lower anchor to the vehicle. Be certain the seat belt webbing between the turning loop and the lower anchor is not twisted.
  6. Install the bolt that secures the third row seat belt lower anchor to the vehicle. Tighten the bolt to the proper specification. Refer to TORQUE SPECIFICATIONS  .
  7. Install the trim panel from to third row seat belt anchor.
  8. Install the upper D-pillar trim. Refer to PANEL, D-PILLAR TRIM, REMOVAL AND INSTALLATION .
