Module, Display Screen (DSM): Installation

  1. Position the Display Screen Module (DSM) (2) to the instrument panel center bezel.

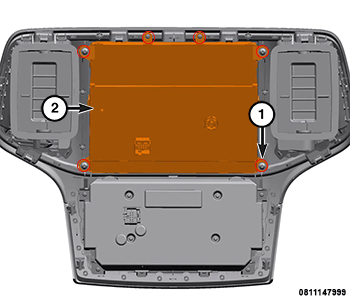

    GC0184539Courtesy of CHRYSLER GROUP, LLC
  2. Install the DSM fasteners (1) and tighten securely.

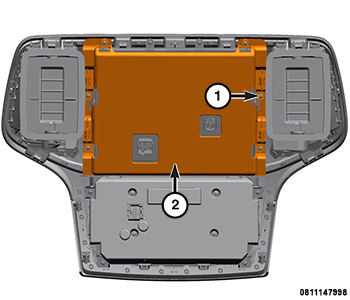

    GC0184443Courtesy of CHRYSLER GROUP, LLC
  3. Install the DSM bracket (2) and the fasteners (1). Tighten securely.
  4. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
