Module, Adaptive Cruise Control (Acc): Description

Courtesy of CHRYSLER GROUP, LLC

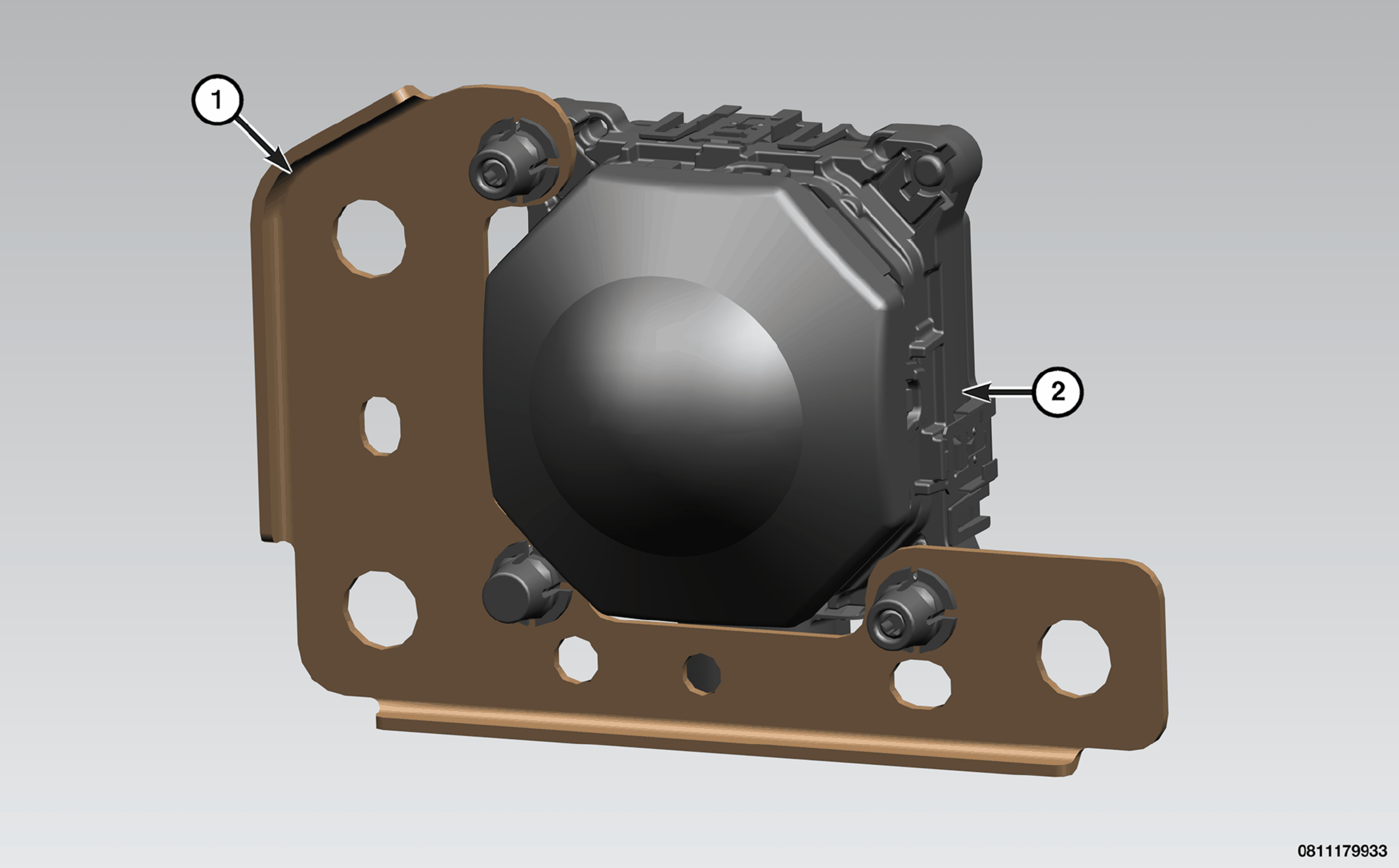

The Adaptive Cruise Control (ACC) module (2) is mounted to the front bumper beam at the center of the vehicle. The module and bracket (1) is serviced together as an assembly.

The ACC module communicates with other vehicle modules using both public and private bus networks to provide the following features sets (when equipped):

• Adaptive Cruise Control (ACC)
• Forward Collision Warning (FCW)
• Advanced Brake Assist (ABA)
