Module, Adaptive Cruise Control (Acc): Installation

Courtesy of CHRYSLER GROUP, LLC

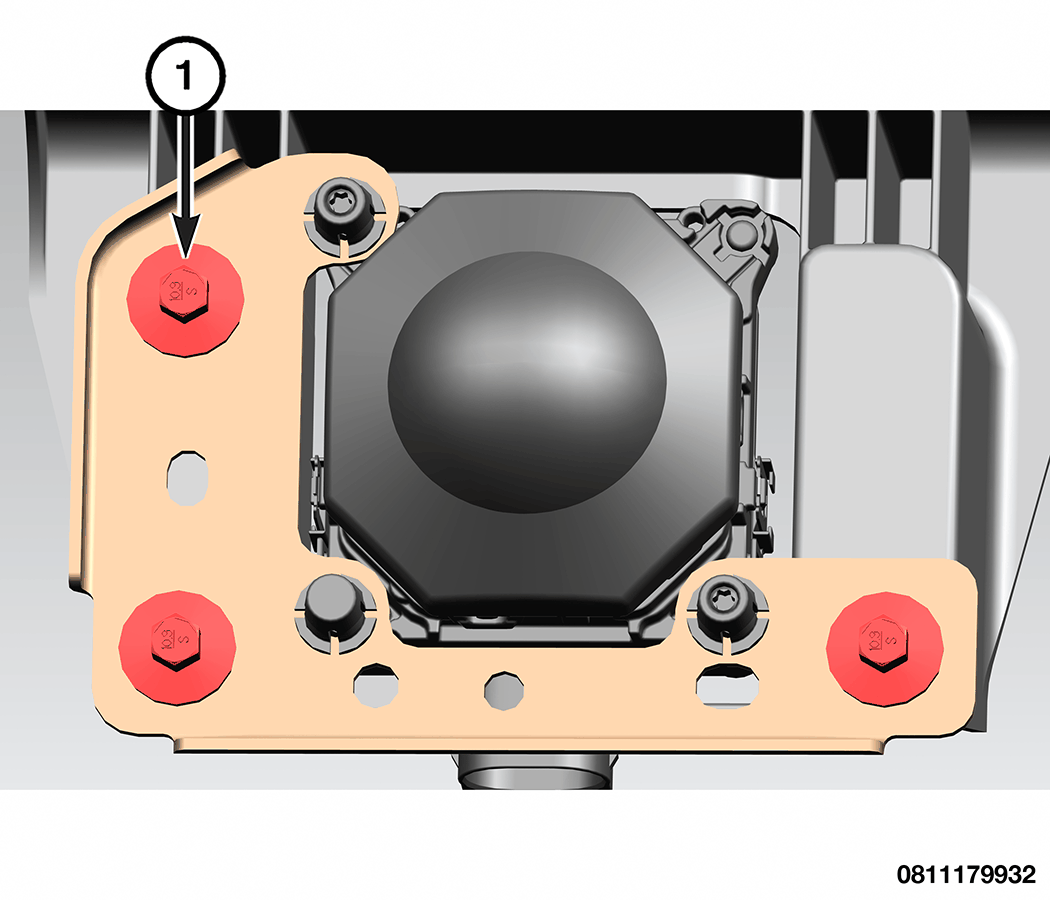

1. Install the fasteners (1) securing the Adaptive Cruise Control (ACC) module to the ACC module bracket.

   Courtesy of CHRYSLER GROUP, LLC

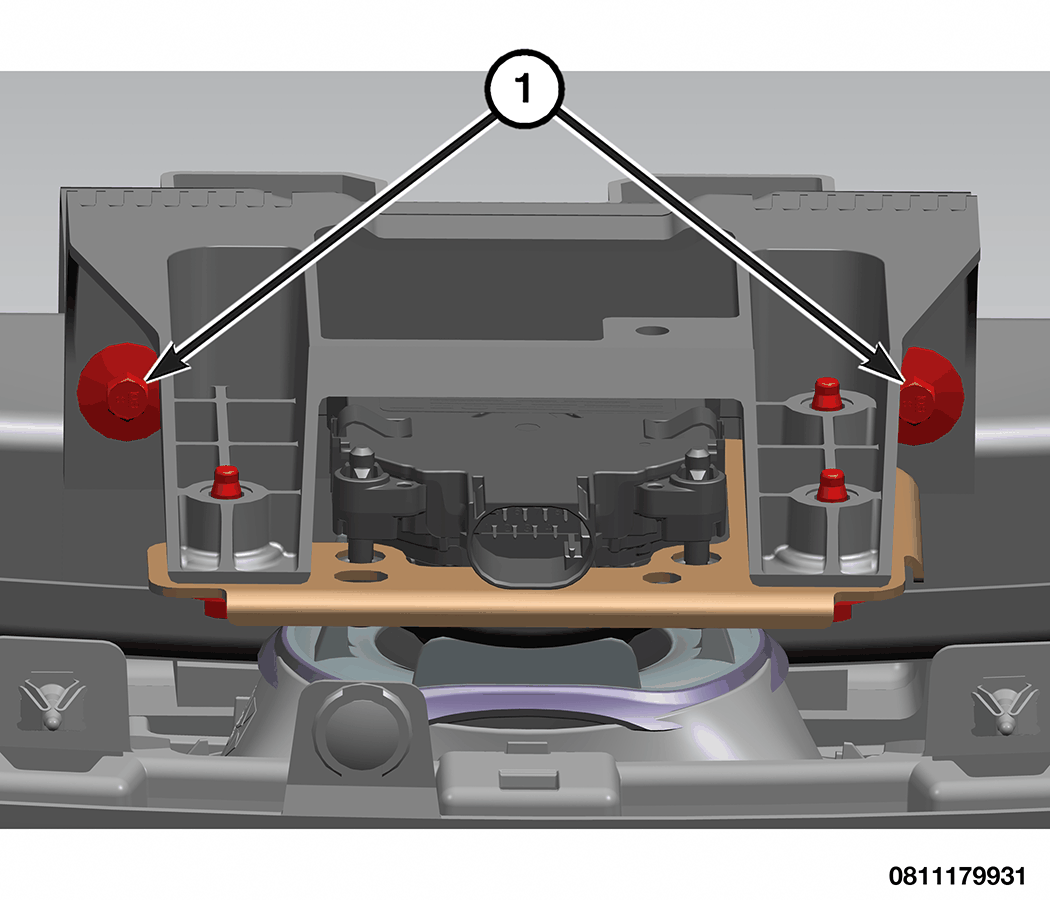

2. Install the fasteners (1) securing the ACC module bracket to the front fascia.
3. Install the front fascia (Refer to INSTALLATION ).
4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
5. Perform the ACC module calibration. Refer to MODULE, ADAPTIVE CRUISE CONTROL (ACC), MODULE PROGRAMMING .
