Technical Specifications: Specifications
NOTE:
Frame dimensions are listed in metric scale millimeter (mm). All dimensions are from center to center of Principal Locating Point (PLP), or from center to center of PLP and fastener location.
INDEX
| DESCRIPTION | FIGURE |
|---|---|

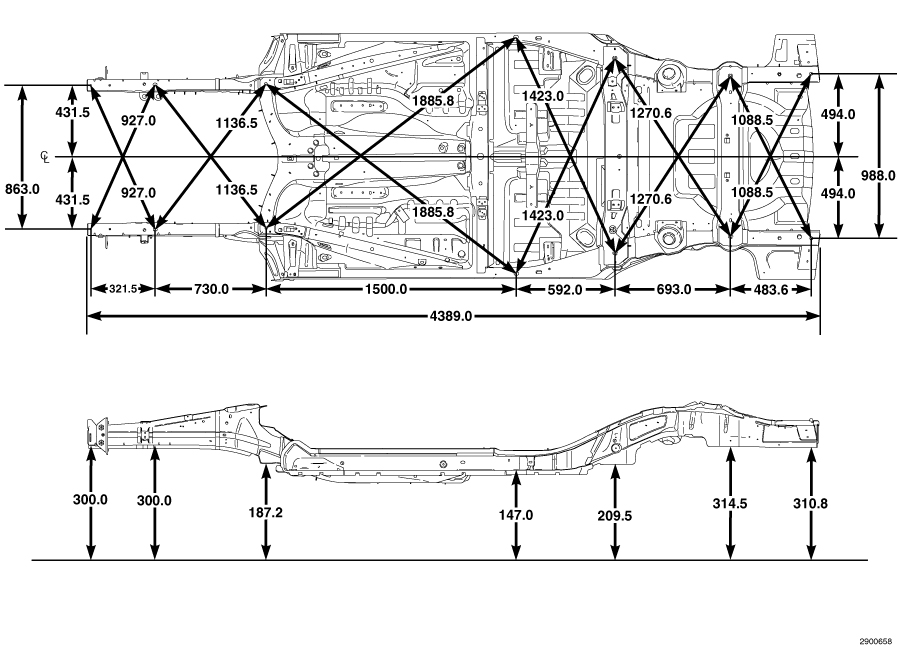

| Under Body Dimensions | Refer to Fig 1. |

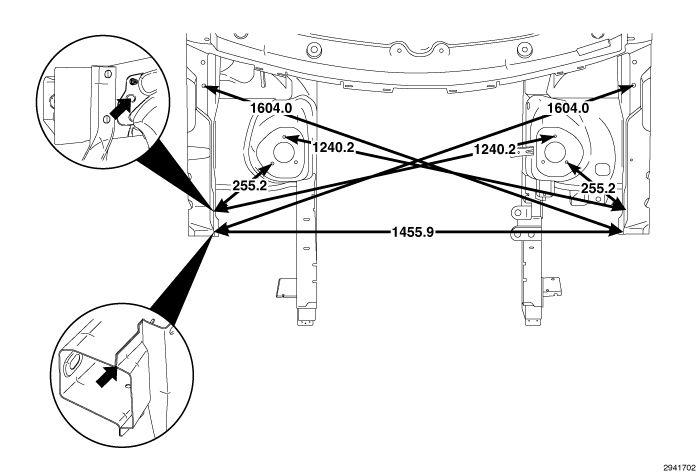

| Under Hood (Quick Reference) | Refer to Fig 2. |

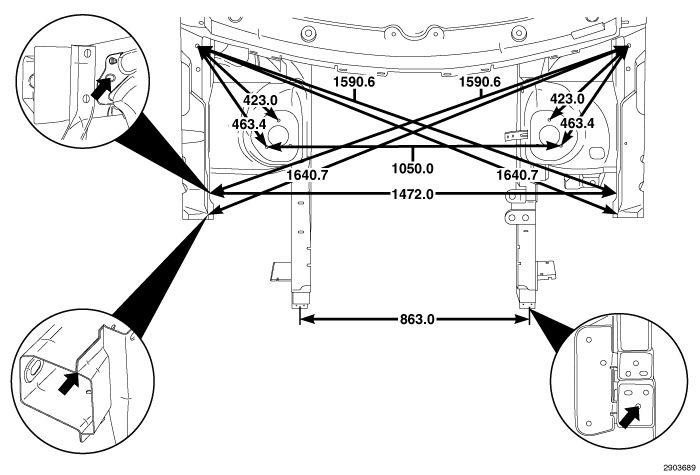

| Under Hood | Refer to Fig 3. |
