Front Switch Module

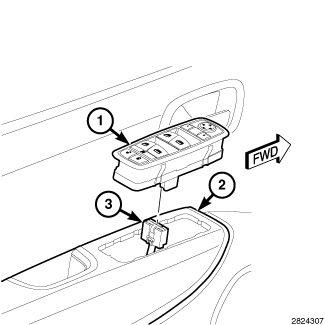

GC0139121Courtesy of CHRYSLER GROUP, LLC
  1. Position the front door switch module (1) close enough to the mounting hole in the armrest (2) and connect the wiring harness connector (3).
  2. Align the switch module to the armrest mounting hole.
  3. Using hand pressure, firmly press the switch module evenly into the mounting hole, until the switch spring steel retainers are fully engaged and the switch bezel is fully seated against the armrest.
  4. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
