Sensor, Differential Pressure: Removal: Diesel
- Disconnect and isolate the negative battery cable.
- Raise and support vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the transmission skid plate. Refer to PLATE, SKID, TRANSMISSION .

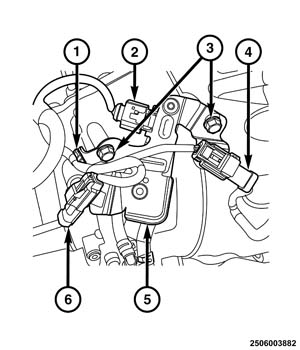

- Detach the exhaust gas temperature sensors wire harness connectors (4, 6) and wire harness retainer (1) from the bracket (5).
- Disconnect the differential pressure sensor wire harness connector (2).
- Remove the bolts (3) and the differential pressure sensor with bracket (5).

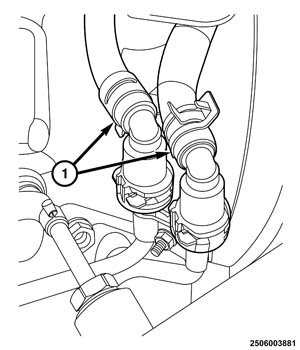

- Disconnect the differential pressure sensor hoses (1).
- If necessary, remove the mounting bolts (3) securing the differential pressure sensor tubing to transmission.
- If necessary, remove the differential pressure sensor tubing (6) from the diesel particulate filter (4).
