Chain And Sprockets, Timing: Removal

WARNING: This page is about a different variant/trim than selected.

Courtesy of CHRYSLER GROUP, LLC

Disconnect the negative battery cable.
Raise and support the vehicle.
Drain the cooling system.

Courtesy of CHRYSLER GROUP, LLC
Remove the oil pan and oil pump pick up tube (2). Refer to REMOVAL .

Courtesy of CHRYSLER GROUP, LLC
Remove the engine timing cover. Refer to REMOVAL .
Verify the slide bushings (1) remain located in the engine timing cover during removal.

Courtesy of CHRYSLER GROUP, LLC

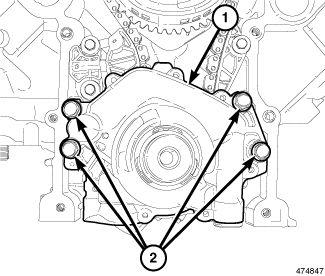

Remove the oil pump retaining bolts (2) and remove the oil pump (1).

Courtesy of CHRYSLER GROUP, LLC
Install the vibration damper bolt finger tight. Using a suitable socket and breaker bar, rotate the crankshaft to align the timing marks with the timing chain sprockets (1, 2).

Courtesy of CHRYSLER GROUP, LLC
Retract the chain tensioner arm (1) until the hole in the arm lines up with the hole in the bracket.

Courtesy of CHRYSLER GROUP, LLC
Install the Tensioner Pin (special tool #8514A, Pins, Tensioner) (1) into the chain tensioner holes.
CAUTION:
Never attempt to disassemble the camshaft phaser, severe engine damage could result.

Courtesy of CHRYSLER GROUP, LLC
Remove the camshaft phaser retaining bolt (1) and remove the timing chain with the camshaft phaser and crankshaft sprocket.

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Inspect the timing chain tensioner and timing chain guide shoes for wear and replace as necessary.
If the timing chain tensioner is to be replaced, remove the retaining bolts (3) and remove the timing chain tensioner (2).

Courtesy of CHRYSLER GROUP, LLC
If the timing chain guide (1) is to be replaced, remove the retaining bolts (2) and remove the timing chain guide (1).
