Description And Operation

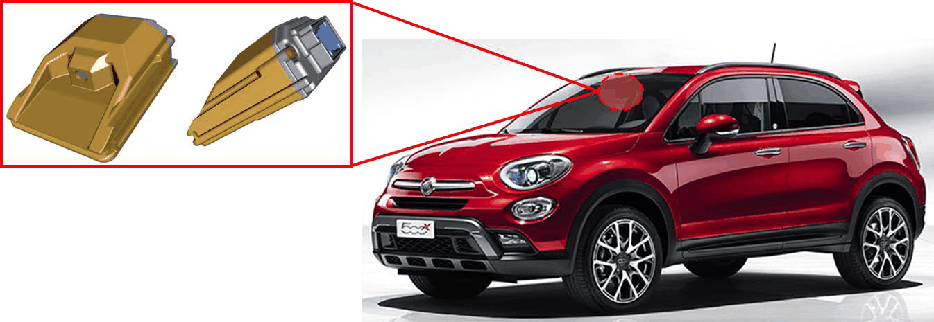

Forward Facing Camera-HALF (FFC-HALF) - The FFC-HALF is a component located behind the rear view mirror in contact with the windshield. The FFC-HALF is a visual spectrum camera that helps determine the type of object detected by the ACC radar, located in front of the vehicle. FFC-HALF is the primary module for the Lane Departure Warning system. FFC-HALF transmits data to the ACC sensor over a dedicated CAN-C operating at 500 kbps.
The FFC-HALF also provides the input for the SMART BEAM headlight system.

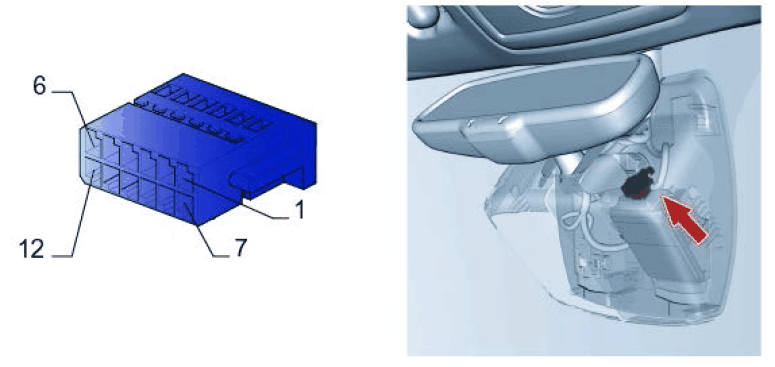

FFC-HALF module pinout
| 1. | - |
| 2. | CAN C2H |
| 3. | CAN C2L |
| 4. | Private CAN C |
| 5. | Private CAN L |
| 6. | POWER |
| 7. | GROUND |
| 8. | - |
| 9. | - |
| 10. | - |
| 11. | - |
| 12. | - |
