Removal And Installation: Front

REMOVAL

WARNING:

To avoid serious or fatal injury on vehicles equipped with airbags, disable the Supplemental Restraint System (SRS) before attempting any steering wheel, steering column, airbags, airbag curtains, knee blocker, seat belt tensioner, impact sensor or instrument panel component diagnosis or service. Disconnect the Intelligent Battery Sensor (IBS)/negative battery cable assembly from the negative battery post, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the SRS. Failure to take the proper precautions could result in accidental airbag deployment.

CAUTION:

When handling a new Occupant Detection Sensor (ODS), it should never be bent, creased, torn, cut or abraded. The ODS should not be handled with or come into contact with hard or sharp-edged tools or objects. Do not allow the ODS to drop more than 2 meters (6.5 feet). Prior to installation, do not sit on, stand on or place boxes, tools or any other foreign object on the ODS. Do not modify the seat foam or trim materials of a seat that contains an ODS. Failure to observe these cautions may result in an inoperative ODS, or an ODS that provides inaccurate inputs to the Occupant Restraint Controller (ORC).

NOTE:

LHD model shown in illustration, RHD model similar.

Disconnect and isolate the negative battery cable(s). Refer to 2.0L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 2.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 2.0L, 12-VOLT BATTERY DISCONNECT/CONNECT - PHEV and/or 3.0L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, BATTERY DISCONNECT - DUAL 12 VOLT BATTERY SYSTEM and/or 3.6L, HYBRID, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM and/or 6.4L, BATTERY DISCONNECT AND CONNECT - SINGLE 12V BATTERY SYSTEM .
Remove the passenger side front seat from the vehicle. Refer to SEAT, FRONT, REMOVAL AND INSTALLATION .
Remove the front seat cushion from seat frame. Refer to COVER, SEAT CUSHION, FRONT, 2 DOOR, REMOVAL AND INSTALLATION or COVER, SEAT CUSHION, FRONT, 4 DOOR, REMOVAL AND INSTALLATION .

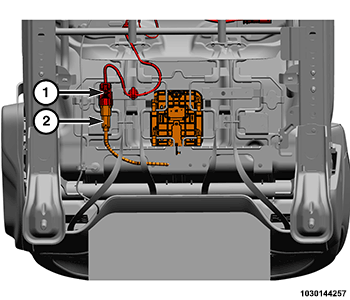

Courtesy of CHRYSLER GROUP, LLC

1 - Wire Harness Connector

2 - ODS Connector
Disconnect the seat wire harness connector under the seat cushion for the Occupant Detection Sensor (ODS) connector.
Remove the ODS wire harness connector retainers from the seat cushion frame.

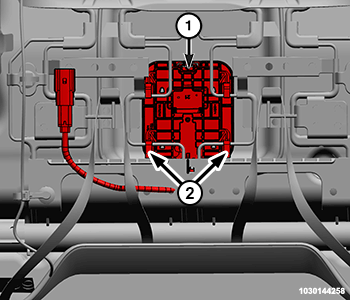

Courtesy of CHRYSLER GROUP, LLC

1 - ODS
Disengage the four molded clips and remove the ODS from the seat frame.

INSTALLATION

Follow the removal procedure in reverse for general reassembly of the components on the vehicle. The steps listed below are calling out specific procedures that should be followed during installation.

Route the ODS pigtail through the seat frame.
Align the ODS to the seat wire frame using the alignment guides.
Attach the ODS to the seat frame by firmly pressing the four molded clips into the seat wire frame.
