Description And Operation
DESCRIPTION

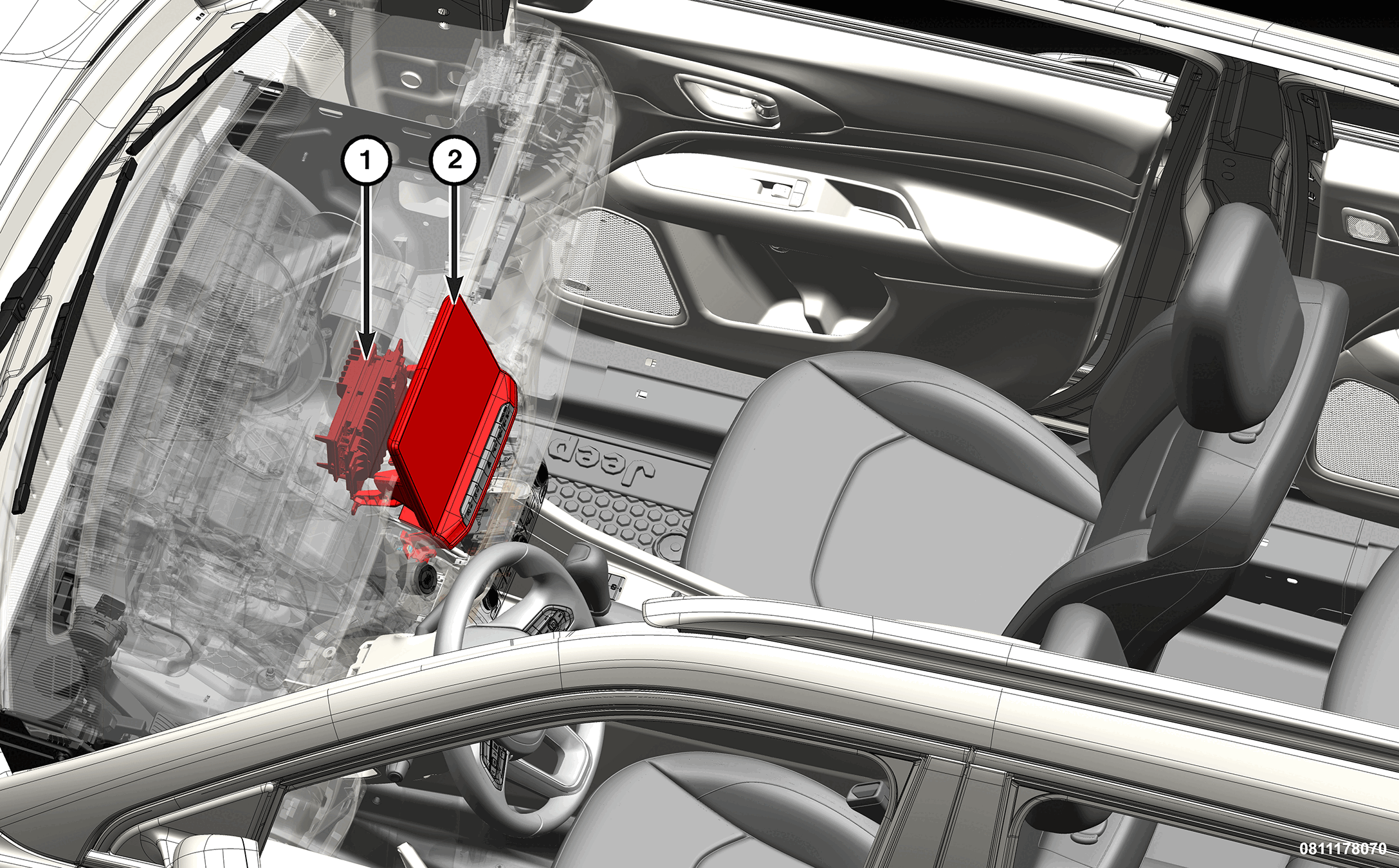

There are three radios available in this vehicle; Uconnect® 5 with 213 mm (8.4 in.) with integral display, Uconnect® 5 with 257 mm (10.1 in.) Display Screen Module (DSM), and Uconnect® 5 NAV with 257 mm (10.1 in.) DSM. Each radio has a distinct chassis design and is identified by a sales code. Only models equipped with the Uconnect® 5 NAV 257 mm (10.1 in.) inch radio are natively programmed with Navigation.
Sales Codes of available radios for this vehicle are:
| Display Size | Sales Code |
| Uconnect® 5 with 213 mm (8.4 in.) | UBE, UEE, UFE, UPE, URE, UUE |
| Uconnect® 5 with 257 mm (10.1 in.) | UBU, UEU, UFU, UPU, UUU |
| Uconnect® 5 NAV with 257 mm (10.1 in.) | UBN, UEN, UFN, UPN, URN, UUN |
Hardwired circuitry connects the RRM to the electrical system of the vehicle. These hardwired circuits are integral to several wire harnesses, which routes throughout the vehicle and retained by many different methods. These circuits may be connected to each other and to the vehicle electrical system through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, details of wire harness routing and retention, connector pin-out information and location views for the various wire harness connectors, splices and grounds. For proper wire repair, and connector repair procedures. Refer to STANDARD PROCEDURE or REMOVAL or INSTALLATION .
The RRM cannot be adjusted or repaired. If the RRM is damaged or ineffective, it must be replaced.
OPERATION
Refer to the Audio/Video/Entertainment/Connectivity Description and Operation for additional information. Refer to DESCRIPTION AND OPERATION .
