Removal And Installation: Installation

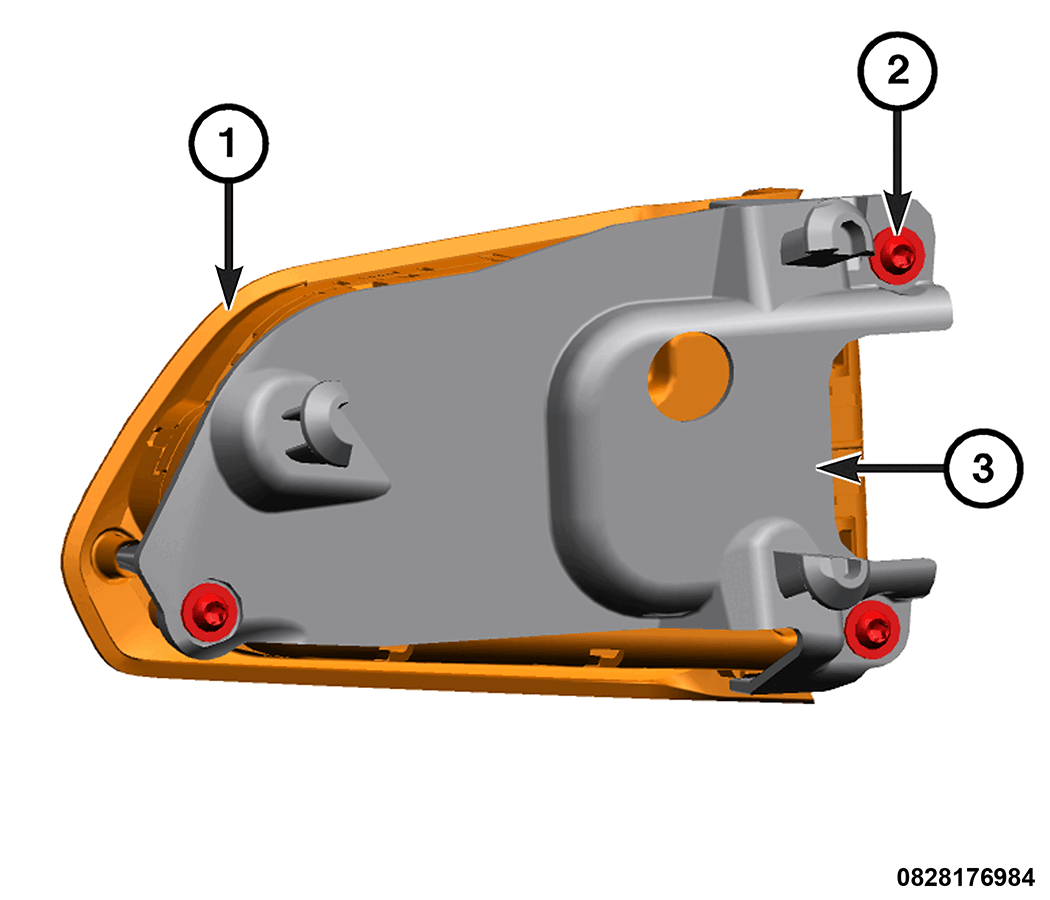

GC0202716Courtesy of CHRYSLER GROUP, LLC
  1. If removed, position the speed control switches (1) to the bracket (3). Install the fasteners (2) and tighten securely.

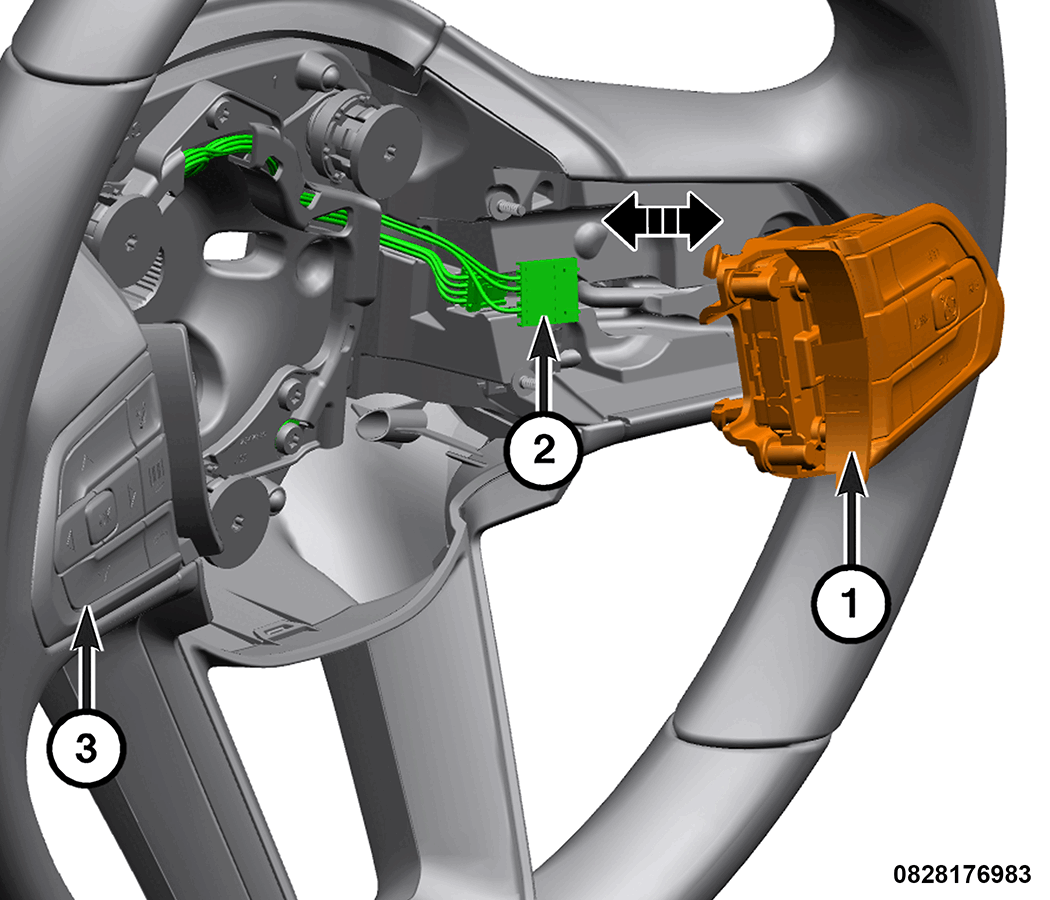

    GC0202754Courtesy of CHRYSLER GROUP, LLC
  2. Connect the wire harness connector (2) to the speed control switches (1).
  3. Install the speed control switches (1) into the steering wheel (3), pressing firmly to verify the cleats are fully engage.
  4. Install the driver air bag. Refer to AIR BAG, DRIVER, REMOVAL AND INSTALLATION .
  5. Connect the negative battery cable. If equipped with an Intelligent Battery Sensor (IBS), connect the IBS connector.
